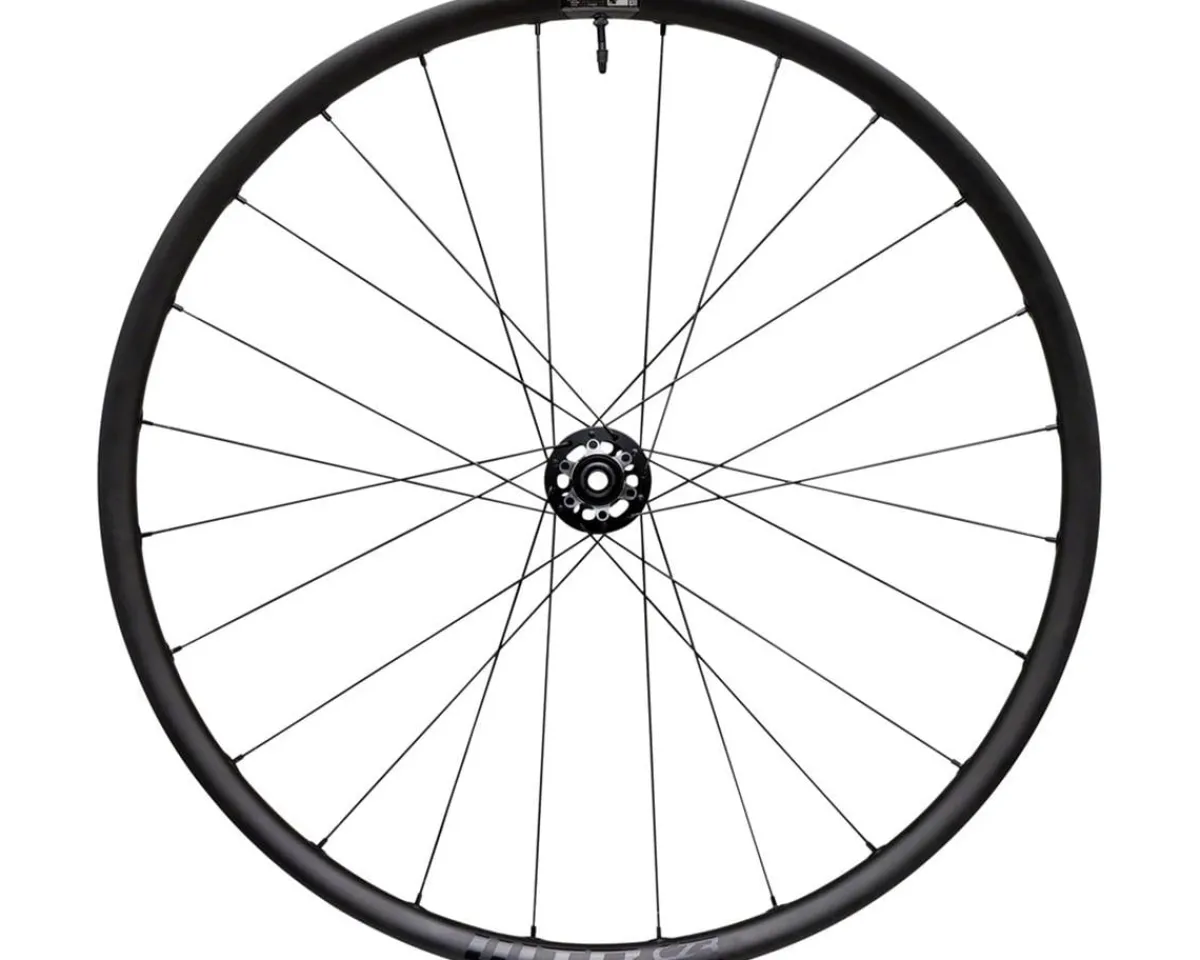

WTB Wheels & Parts|CZR i23 Gravel Wheels (Black) (Front) (12 x 100mm) (700c) (Centerlock) (Tubeless)

WTB CZR i23 Gravel Wheels Description:

The lightweight WTB CZR i23 Gravel Wheels are a comfort, durability, and performance upgrade for any drop-handlebar bike with an adventurous soul. Advanced carbon fiber construction retains extra material where it is needed (reinforced spoke beds and hooked bead, for example) while minimizing the material in less critical areas to shave weight and improve rider comfort. An asymmetrical rim featuring a 3mm offset to the spoke bed combined with 4D drilled spoke holes balances out the spoke tension for a wheel that is comfortable and strong with great braking and handling performance. High performance Frequency Hubs in the center of the wheels combine a very responsive 6-pawl design with smooth rolling sealed bearings for excellent efficiency and durability, and that hub is laced to the rim via 28 cold forged stainless steel Pillar 21 Wing spokes and alloy spoke nipples laced in a proven 3-cross pattern for outstanding stiffness and strength. Last but not least, these wheels accept centerlock style disc rotors and have a hooked tubeless ready rim that are compatible with virtually any all-road or gravel tire, making it very easy to outfit these wheels onto virtually any wider-tire drop handlebar bike.

Features:

• Lightweight gravel wheels designed to be durable and efficient while providing a comfortable ride
• CZR i23 Carbon Rim fine tunes the carbon fiber thickness throughout the rims construction to reduce weight and produce a compliant, comfortable ride that will reduce rider fatigue
• 24mm deep rim has a reinforced spoke bed that is offset 3mm and 4D drilled spoke holes to create a wheel with a balanced spoke tension, resulting in better strength and lateral stiffness as well as a smooth ride
• 23mm inner width and hooked, tubeless ready rim design provides great impact protection and tire sidewall support, and will accept any adventure road or gravel bike tire
• Frequency Hubs are filled with top-tier EZO bearings for durability and low rolling resistance
• Rear hub features a 6 pawl design that uses lightweight springs to minimize drag and has 5° of engagement for taking on technical trails and grinding uphill sections
• 28hole, 3-cross lacing with Aerodynamic Wing bladed spokes and Sapim alloy nipples provide an optimal balance between strength and light weight and has the stiffness needed for great acceleration and confident handling
• Solid rim strip and TCS tubeless ready rim tape installed on the wheel

Specifications:

• Wheel Size: 700c
• ISO Diameter (ETRTO): 622
• Position: Front | Rear
• Tire Type: Tubeless (Clincher)
• Brake Type: Disc Brake (Centerlock)
• Hub: Shimano
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front) | 12 x 142mm (Rear)
• Rim: WTB CZR i23 (Carbon Fiber) (Asymmetrical/Offset Spoke Bed) (Hooked Bead) (Tubeless Ready) (Reinforced Spoke Bed) (24mm Depth)
• Rim Width: 23mm
• Valve: Presta
• Spoke Count: 28H (3-Cross)
• Spoke Type: J-Bend
• Material: Carbon
• Color: Black
• Weight: 650g (Front) | 805g (Rear)
