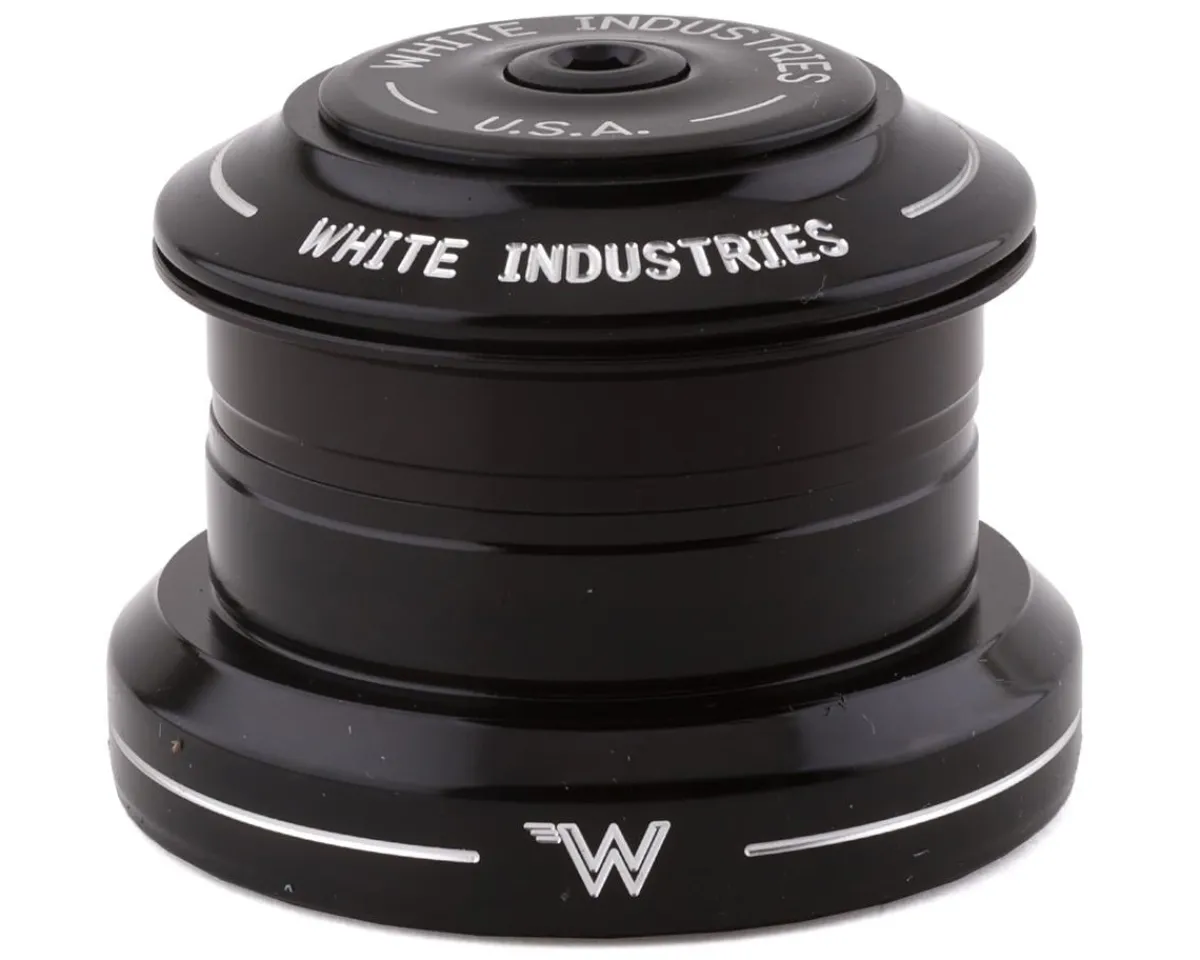

White Industries Headsets & Spacers|ZS/EC Headset (Black) (1-1/8″ to 1-1/2″) (ZS44/28.6) (EC44/40)

The White Industries ZS44/EC44 headset is designed to fit frames with straight 44mm head tubes and can accommodate straight and tapered fork steerers with the appropriate crown race. The “ZS” stands for “Zero Stack” as the section of the cup that houses the top bearing sits inside of the frame’s head tube while “EC” stands for “External Cup” meaning the section of the cup that houses the lower bearing sits outside of the frame’s head tube. The “44” stands for the diameter of the “skirt” that presses into the frame.

Features:

• Constructed from US sourced 6061-T6 Aluminum
• Machine engraved White Industries logos
• Easily replaceable bearings
• Split crown race makes for a tool-free installation

Specifications:
S.H.I.S. Upper:ZS44/28.6
S.H.I.S. Lower:EC44/40
Steerer Tube:1-1/8″ to 1-1/2″ (Tapered)
Upper Stack Height:8mm
Lower Stack Height:12mm
Upper Bearing Contact Angle:36/45°
Lower Bearing Contact Angle:36/45°
Crown Race:40
Color:Black
Weight:104g
