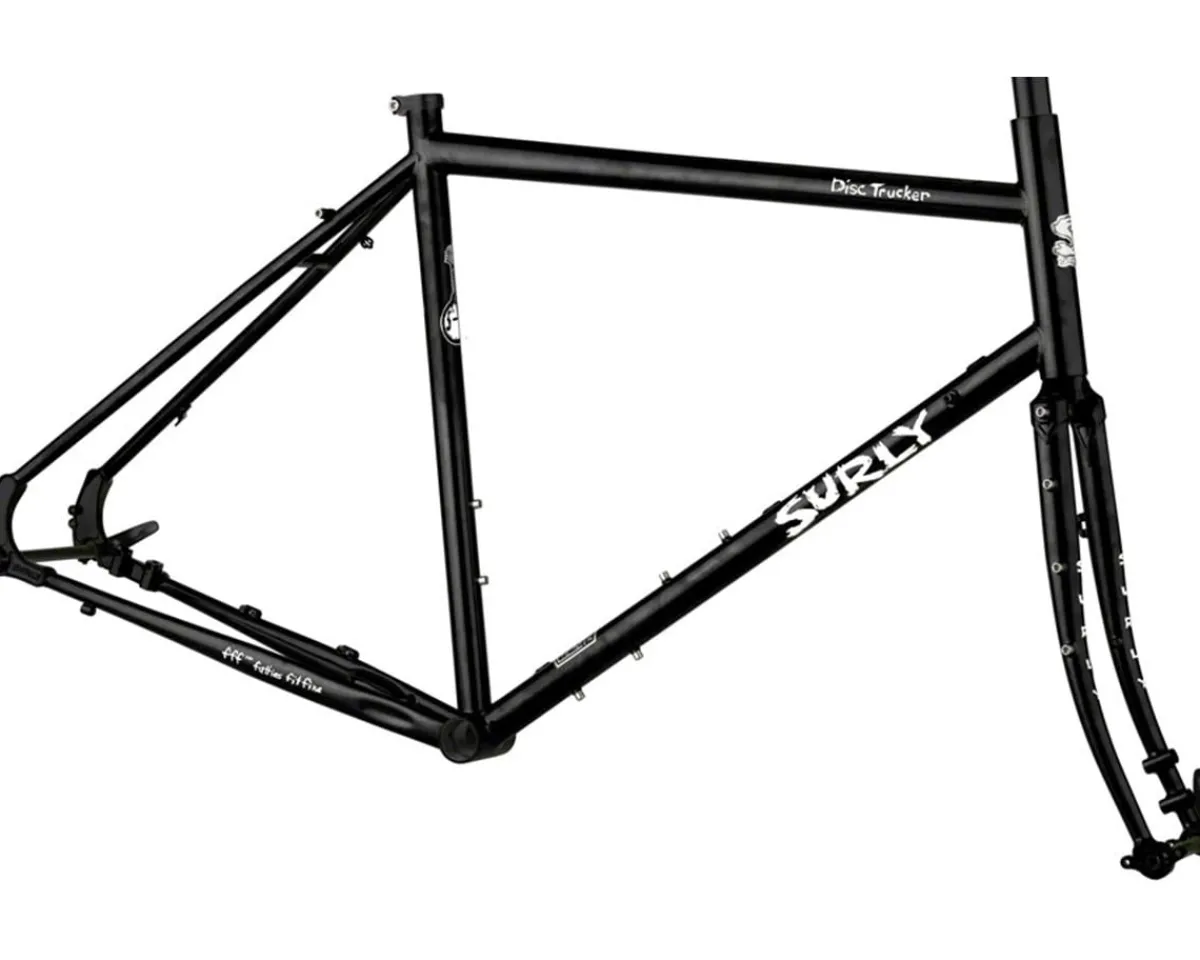

Surly Frames|Gravel Bikes|Disc Trucker 26″ Frameset (Hi-Viz Black) (54cm)

Surly Disc Trucker 26″ Frameset Description:

The Surly Disc Trucker is a pure-bred drop bar touring and commuting bike designed for self sustained fully loaded riding on mostly paved roads. Fitted with disc brake mounts and thru-axles for a more comfortable and controlled ride with plenty of stopping power. The extended headtube allows for a more upright riding position and added durability without the need for a bunch of spacers. Water bottle mounts, braze-ons for racks, fenders, and extra cargo leave no shortage for attaching all the essentials for an extended adventure. Travel in style with a purpose-built touring machine. Grab a map, pick a destination…or not, and let the journey begin.

Features:

• 100% Chromoly steel frame with a double-butted main triangle and E.D. coating for increased frame life
• 100% Chromoly steel fork adds to the ride quality and increases durability
• Braze-ons for fenders, racks, and almost anything else you might want to stick on your bike, plus spare spoke holders for when the road gets rough
• Fork blade three-pack mounts for even more mounting options
• Dynamo hub routing integrated into the fork
• Front and rear dropouts to accommodate 12mm thru-axles and flat-mount disc brakes
• Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls

Specifications:

• Frame Material: 4130 Chromoly (Natch Tubing) (Double-Butted Main Triangle) (TIG Welded) (ED Coated)
• Fork Material: 4130 Chromoly (Natch Tubing) (Double-Butted Tapered Fork Blades) (Brazed Lugs) (ED Coated)
• Headset: Not Included
• Headset Size: EC34/28.6 (Upper), EC34/30 (Lower) (1-1/8″)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Flat Mount
• Rotor Compatibility: 160mm (Front and Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front), 12 x 142mm (Rear) (Axles Included)
• Stem: Not Included
• Stem Size: 1-1/8” Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (30mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Chainring Compatibility: 1x (47T), 2x (34/50), 3x (33/47/56T)
• Tire Clearance: 26″ (26 x 2.0″)
• Cable Routing: External
• Dropper Post Routing: No
• Water Bottle Bosses: 3 Mounting Positions (Seattube, Downtube Top, Downtube Bottom)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 28.6mm Clamp
• Rear Derailleur Hanger: Included
• Color:Hi-Viz Black (Black)
• Weight: –
