SRAM Electronic Shifting|Groupsets|XX T-Type Eagle E-Bike Transmission AXS Groupset (Black) (165mm) (Brose) (36T) (1 x 12 Speed) (UDH)

SRAM XX Eagle AXS E-Bike Transmission Groupset Description:

The XX Eagle AXS E-Bike Transmission Groupset is a lightweight and remarkably robust drivetrain that elevates your riding experience in a way never felt before. The entire system is synchronized, from the stiff crank to the direct-mount derailleur to the X-SYNC chainrings and cassette mapping technology that creates seamless shifts even under your hardest power output. The XX Flattop hollow pinned chain prevents lateral deflection which is ideal for E-Bike use, and is plated with electroless nickel and coated with PVD for unbelievable resistance to corrosion and wear. Last but not least the AXS Pod Ultimate controller, featuring an effortless click-and-fire two-button design, transforms the rider’s input while also having interchangeable buttons and fully customizable functionality so the rider can dial in the controls.

Note * The SRAM Eagle Transmission Groupsets are only compatible with frames that are equipped with the UDH “Universal Derailleur Hanger” technology. To check for frame compatibility, head over to SRAM’s UDH Frame Compatibility Finder Tool.

Features:

• XX Eagle T-Type Derailleur:
• Hangerless interface fully mounts directly to the frame around the wheel axle itself
• Competition proven strength and reliability, and low profile tucks in-line with the frame to prevent impacts with trail obstacles
• Install and pair with the standard AXS set-up and pairing procedure
• Built for the abuse enduro and trail E-Bikes are known to dish out
• Overload Clutch protects the derailleur when taking a hit from rocks and trail debris
• Lower pulley is known as the “Magic Wheel” which can spin even when an object becomes lodged in the pulley
• Replaceable B-Knuckle cover and outer link
• XX Eagle T-Type Crankset:
• Lightweight carbon fiber construction has exceptional durability, strength, and stiffness
• Compatible with the ISIS style spindles on either Bosch or Brose e-bike motors
• Includes self-extracting bolt
• AXS Pod Ultimate Controller:
• Light weight, highly adaptable ergonomics, and adjustability with a premium finish
• “Click and Fire” two-button design
• Paddle functionality can be personalized for complete customization via the AXS App
• Ultimate version includes concave or convex buttons to customize the controls to suit personal preferences
• XX Eagle T-Type Cassette:
• Full X-SYNC and cassette mapping improves shifting inboard and outboard while under load
• X-Dome main cluster (the 9 smallest cogs) are machined out of a single block of hardened tool steel; 38T and 44T are made out of stamped steel and are pinned to the aluminum 52T cog
• Optimized gear steps on low end
• Setup Cog for fool-proof set up
• XD driver body compatible
• XX Eagle T-Type Chain Features:
• Very stiff and strong hollow pin design ensures smooth shifting under the load of E-Bikes
• Flattop profile specifically engineered for Eagle Transmission
• Electroless nickel plating with a PVD coating to resist corrosion and wear
• AXS Transmission compatible only
• Eagle T-Type Chainring Features:
• 34T -or- 36T 104 BCD
• Included clip-on guard for added protection from rocks and trail debris, and chainring is bashguard compatible
• AXS Battery Charger Features:
• Single battery charger specifically designed for AXS batteries
• Colored lights indicate where the charging cycle is
• Includes USB-C cable to connect charger to a computer or to a wall adapter (wall adapter sold separately)

Specifications:

• Speed: 1 x 12 Speed
• Shifter Compatibility: AXS Transmission
• Shift Mechanism: Electronic (Wireless)
• Max Cog: 52T
• Bottom Bracket Compatibility: –
• Chainring: 34T -or- 36T (104 BCD)
• Crank Material: Carbon
• Drive Type: SRAM XD
• Cassette: 10-52T
• Weights:
• Derailleur: 465g
• Pod Controller: 48g
• Crankset: 370g
• Chainring: –
• Cassette: 380g
• Chain: 247g

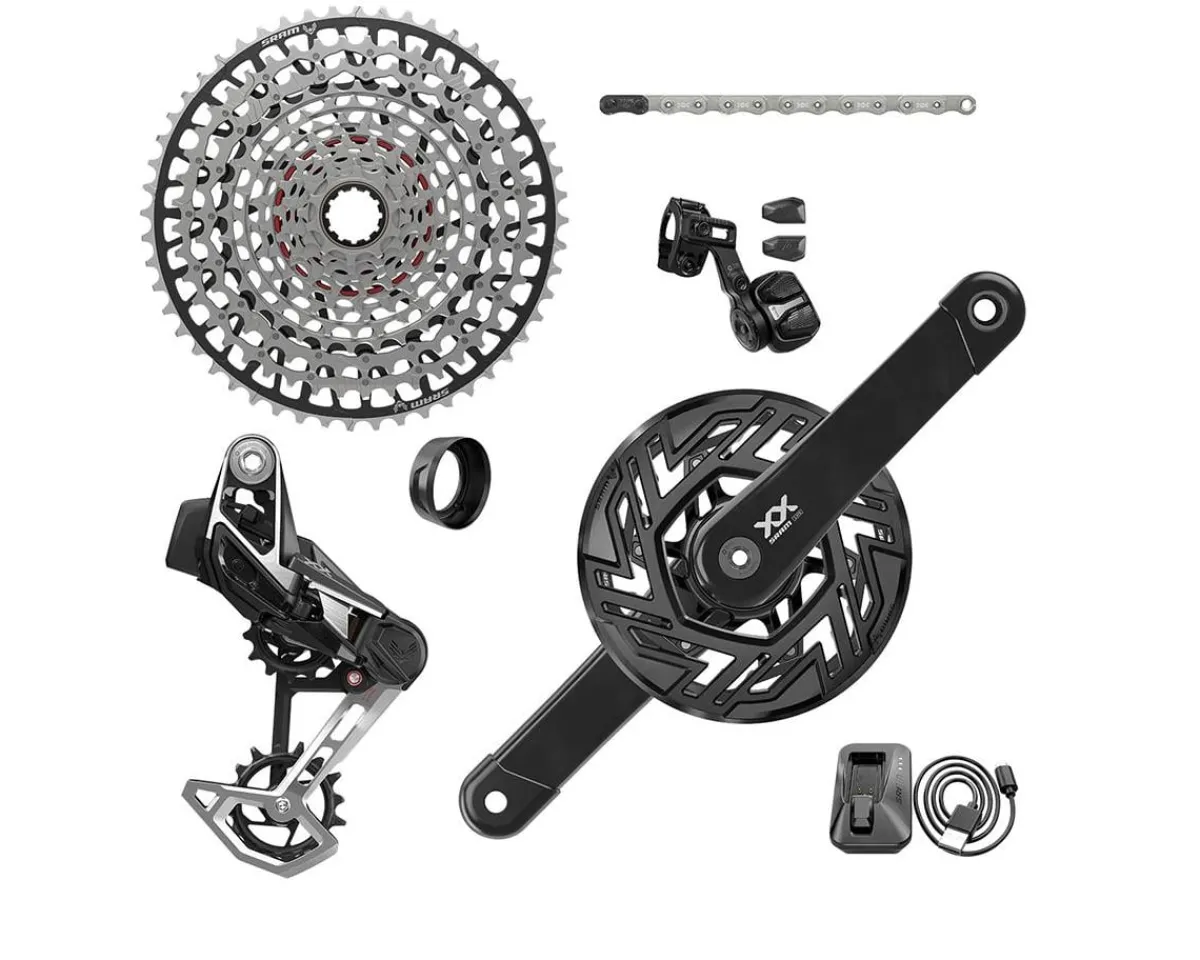

Includes:

• XX Eagle AXS Transmission Derailleur w/ Battery
• XS 1297 T-Type Cassette (10-52)
• XX Eagle T-Type Crankset w/ 36T Chainring -or- No Crank Arms and a 34T Chainring
• Chainrings have a 104 BCD
• POD Ultimate Concave Controller
• XX T-Type Flattop Chain (126 Links) (E-Bike Approved)
• Charger & USB-C Cord
• SRAM Chain sizing guide
