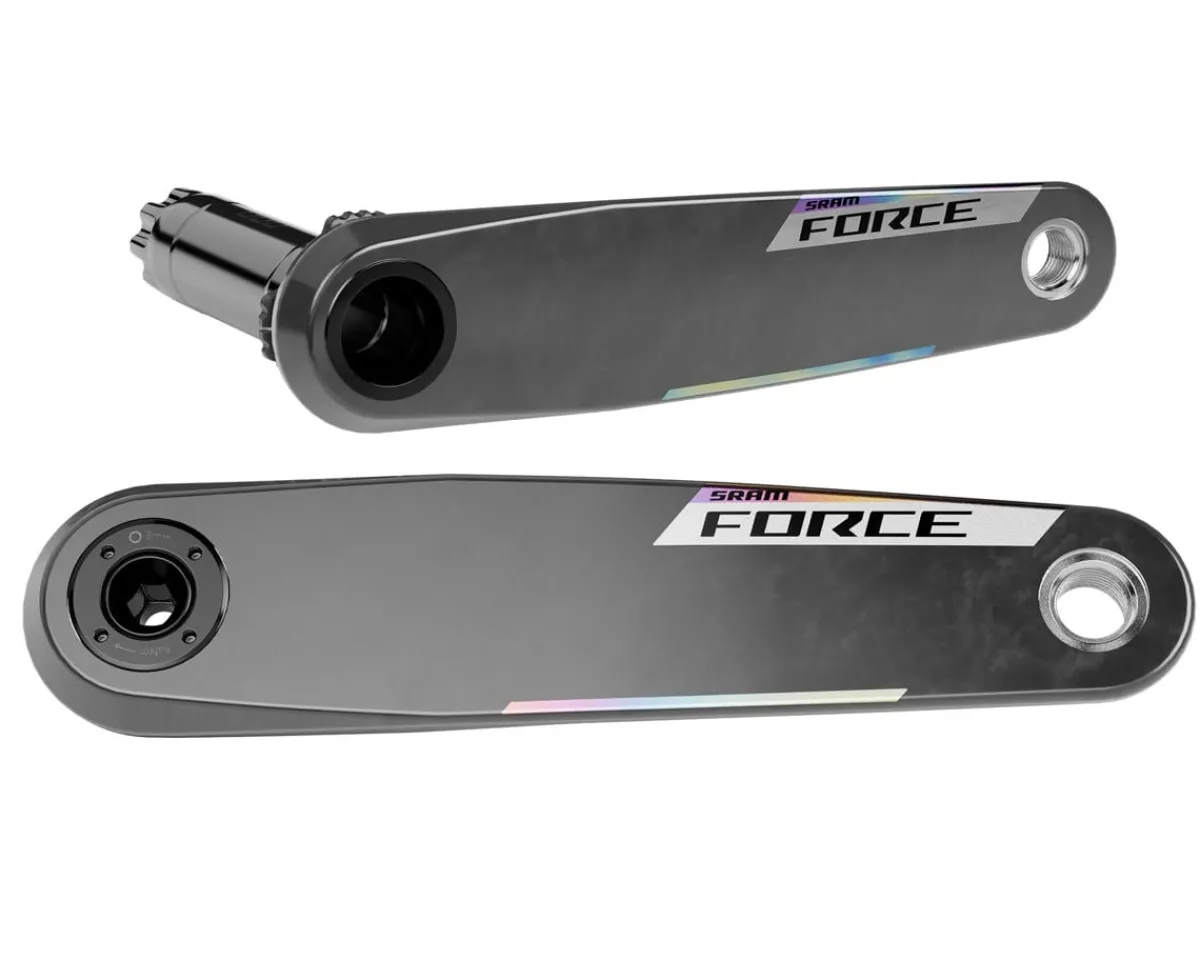

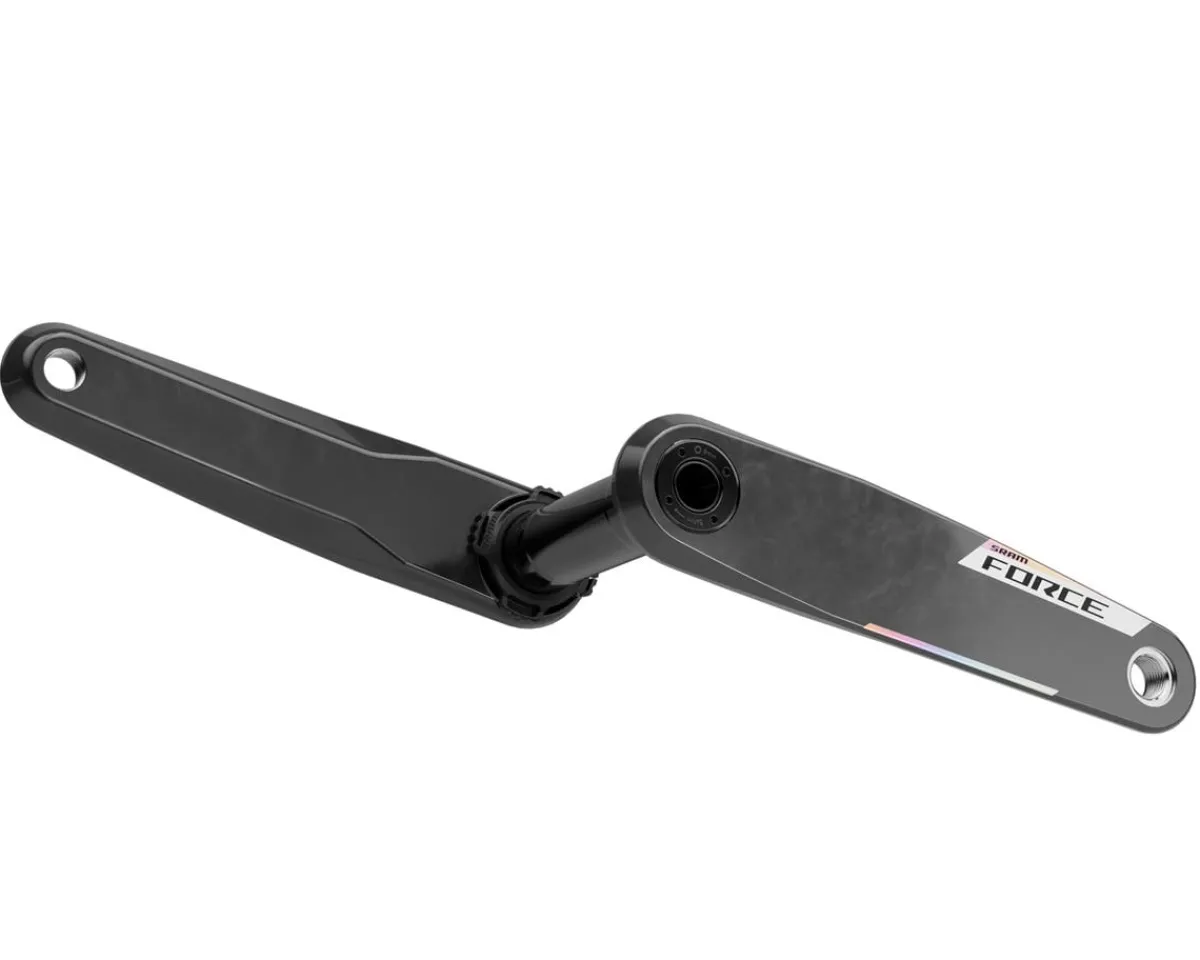

SRAM Cranksets & Parts|Force Crank Arm Assembly (Black) (DUB) (160mm) (E1)

SRAM Force Crank Arm Assembly Description:

The SRAM Force Crank Arm Assembly is beautifully designed to effortlessly propel a rider forward. Stiff and lightweight carbon fiber crankarms provide incredible efficiency and power transfer to the rest of the drivetrain, and are joined to SRAM’s proven DUB bottom bracket spindle that will allow a simpler installation of these cranks onto nearly any bicycle/frame. These crank arms are available in several lengths and utilize SRAM’s 8-bolt direct mount chainring interface that enables a rider to easily customize the fit and gearing on the bike to suit their needs and long term performance goals.

Note: Chainrings are sold separately and are not included with Crankarm Assembly.

Features:

• Stiff carbon fiber crank arms efficiently transfer power from the pedals to the rest of the drivetrain
• 29mm diameter alloy DUB bottom bracket spindle adds durability, reduces weight, improves stiffness, and simplifies installation (bottom bracket cups and bearings sold separately)
• 8-Bolt chainring mount interface is compatible with SRAM’s single and double integrated chainrings, as well as the AXS Power Meter Spider (chainrings and the power meter spider/chainrings are sold separately)
• Available in lengths from 160mm to 175mm to make it easier for a rider to achieve an optimal fit

Specifications:

• Intended Discipline: Road
• Spindle Diameter: 29mm (SRAM DUB)
• Bottom Bracket Included: No
• Pedal Spindle: 9/16″
• Chainrings Included: No
• Chainring BCD: –
• Chainring Mount: SRAM Direct Mount (8-Bolt)
• Chainline: 44.7mm
• Drive Type: 1x | 2x
• Speed Compatibility: 12 Speed | 13 Speed
• Chainring Material: –
• Crankarm Material: Carbon
• Color: Black
• Weight: –
