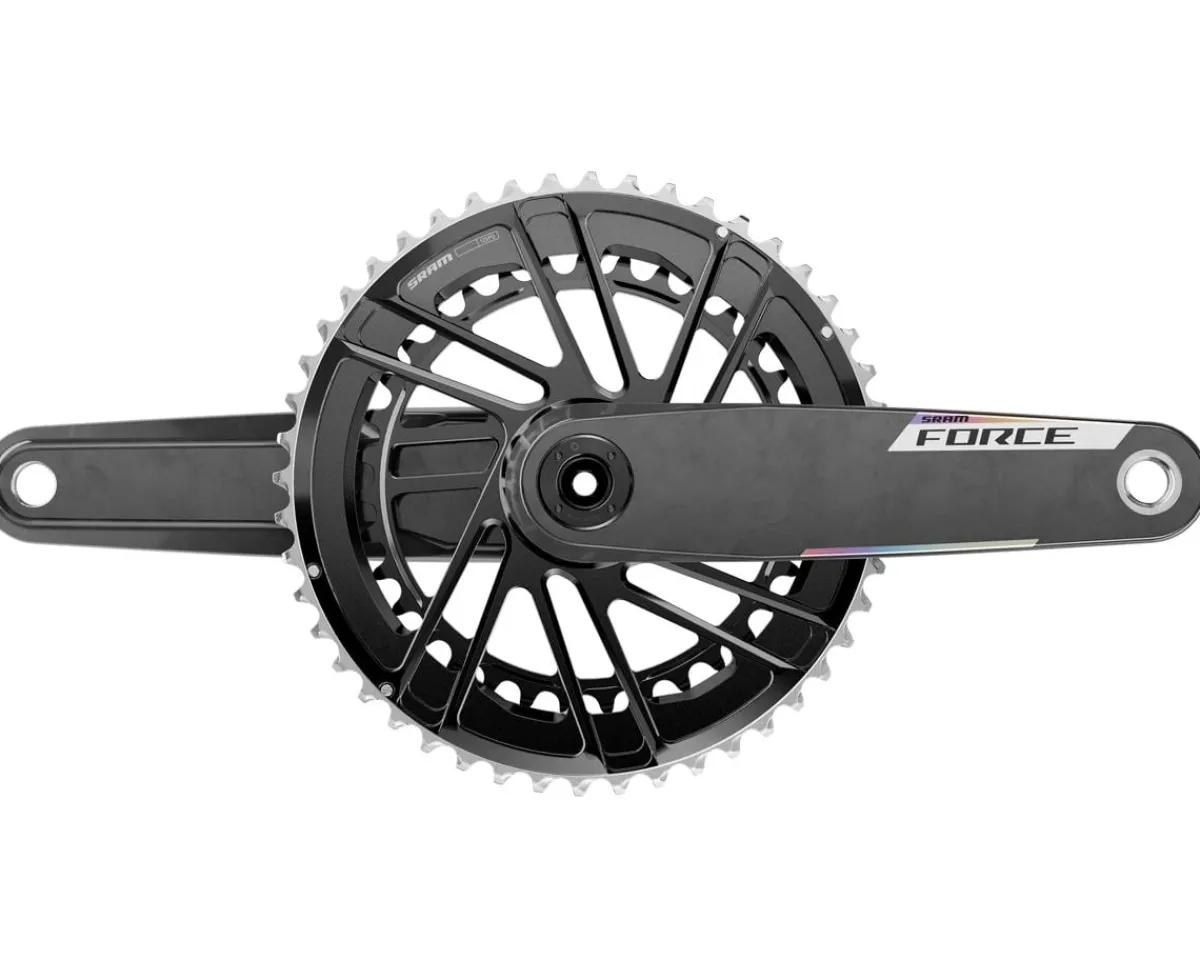

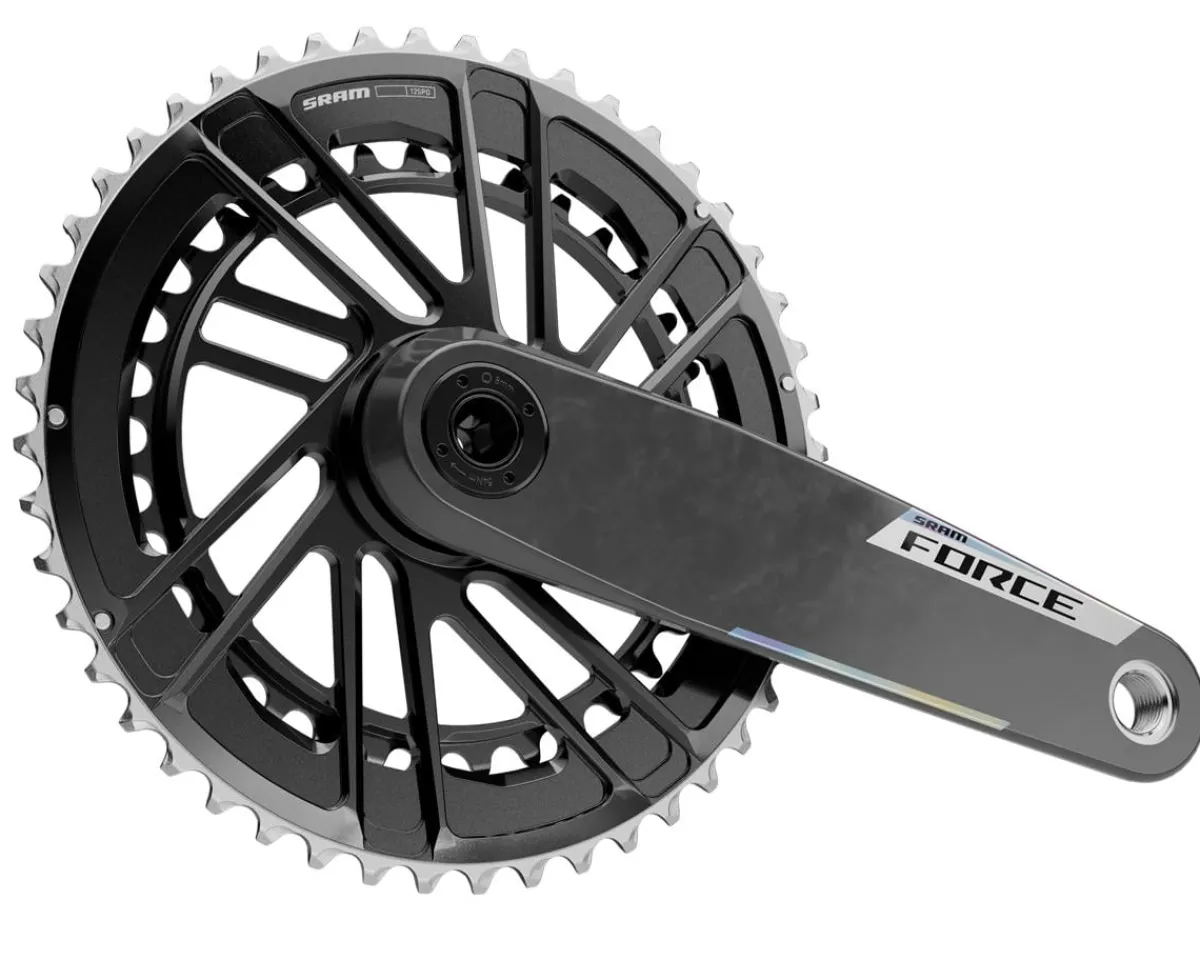

SRAM Cranksets & Parts|Force AXS Direct Mount Crankset (Black) (2 x 12 Speed) (DUB) (160mm) (46/33T) (E1)

SRAM Force AXS Direct Mount Crankset Description:

The SRAM Force AXS Direct Mount Crankset was developed due to SRAM’s relentless pursuit of pure speed and efficiency. Stiff and lightweight carbon fiber crankarms are joined to SRAM’s proven DUB bottom bracket spindle to provide incredible efficiency and power transfer to the rest of the drivetrain. A one-piece, direct mount 2x chainring assembly utilizes aggressively sculpted shift ramps, shifting pins, and X-Range gearing (with a 13t difference between the big and small chainrings) to provide rock solid shifting performance; additional benefits of those chainrings are less weight (compared to traditional multi-piece chainring setups), reduced noise, and the gear changes are less dramatic so a rider can more easily maintain a cadence as they are switching between the two chainrings for an easier time laying down power when going over climbs, down descents, railing around corners, and for when it is time to ramp up the speed on the flats. Add in an attractive finish that compliments the appearance of classic and modern bicycles plus a wide range of gearing and crank arm lengths, and these cranks become a very easy upgrade to the fit, looks, and performance of a bicycle.

Features:

• Stiff carbon fiber crank arms efficiently transfer power from the pedals to the rest of the drivetrain
• 29mm diameter aluminum DUB bottom bracket spindle adds durability, reduces weight, improves stiffness, and simplifies installation (bottom bracket cups and bearings are not included)
• One-piece 2x chainring design is stiffer for improved shifting precision and reduces creaking noises typical of traditional multi-piece chainrings
• X-Range gearing with a 13t difference between big and small chainring results in faster and more positive shifts between chainrings and makes it easier to maintain the pedaling cadence when shifting
• Multiple chainring combinations and a wide range of crank arm length options are available to optimize the biomechanical fit and gearing of the bicycle
• Easily accepts the upgrade to SRAM’s Force Threaded Mount Power Meter Spider and Chainrings (spider and chainrings are available separately)

Specifications:

• Intended Discipline: Road
• Spindle Diameter: 29mm (SRAM DUB)
• Bottom Bracket Included: No
• Pedal Spindle: 9/16″
• Chainrings Included: Yes
• Chainring BCD: –
• Chainring Mount: SRAM Direct Mount (8-Bolt)
• Chainline: 45.0mm
• Drive Type: 2x
• Speed Compatibility: 12 Speed
• Chainring Material: Aluminum
• Crankarm Material: Carbon
• Color: Black
• Weight: –
