Specialized Suspension|Suspension Pivot Bolt Kit (w/ Pivot Spacers) (Black) (Fits 2021-2023 Epic Full Suspension)

Specialized Suspension Pivot Bolt Kit Description:

The Specialized Suspension Pivot Bolt Kit contains all of the bolts and washers needed to replace damaged or missing pivot bolts on model year 2021-2023 Specialized Epic full suspension bicycles and frames.

Features:

• All components are constructed out of a rugged alloy material for great performance and durability with lighter weight
• Blue thread-locking compound pre-installed on the bolts to prevent them from coming loose while riding

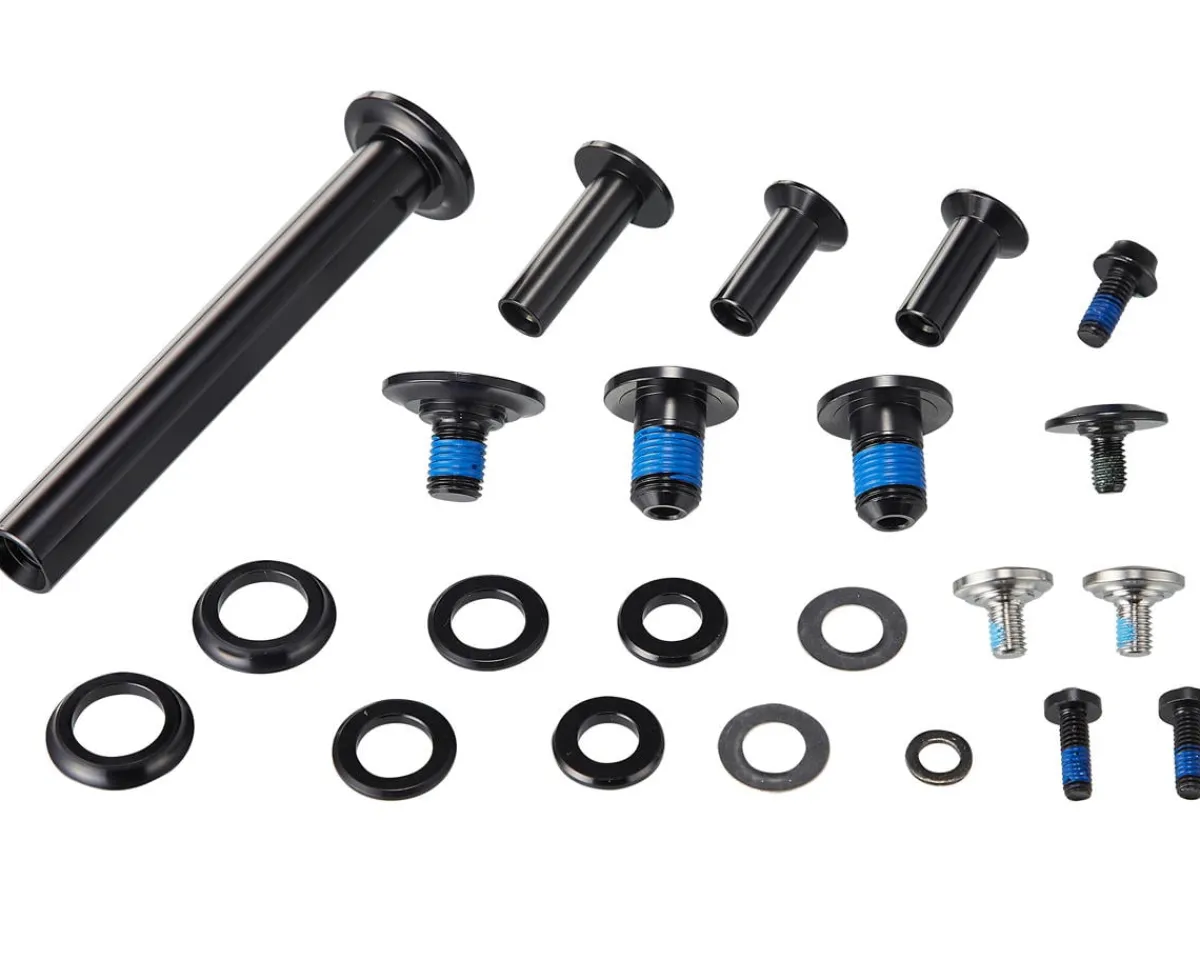

Each Kit Includes:

• (1) Alloy Main Pivot Axle (12mm Wide x 86mm Long)
• (1) Alloy Main Pivot Bolt (8 mm Wide x 12.2mm Long; Torque: 89 in-lbf (10 Nm))
• (2) Alloy Main Pivot Spacer (12.1mm Inner Diameter x 19mm Outer Diameter x 3mm Thick)
• (2) Alloy Shock Link to Seat Tube Pivot Bolts (10mm Wide x 16mm Long; Torque: 89 in-lbf (10 Nm))
• (2) Alloy Shock Link to Seat Tube Pivot Spacers (10.1mm Inner Diameter x 16.5mm Outer Diameter x 2mm Thick)
• (2) Alloy Shock Link to Seatstay Pivot Axles (8mm Wide x 22.33mm Long)
• (2) Alloy Shock Link to Seatstay Pivot Bolts (5mm Wide x 8.6mm Long; Torque: 53 in-lbf (6 Nm))
• (2) Alloy Shock Link to Seatstay Pivot Spacers (8.1mm Inner Diameter x 15.5mm Outer Diameter x 2.5mm Thick)
• (1) Alloy Forward Shock Eye Axle (8mm Wide x 29.5mm Long)
• (1) Alloy Forward Shock Eye Bolt (5mm Wide x 8mm Long; Torque: 53 in-lbs (6 Nm))
