Specialized Suspension|Replacement Parts|Levo 4 Suspension Pivot Bolt Kit (2025+) (w/ Pivot Spacers)

Specialized Levo 4 Suspension Pivot Bolt Kit Description:

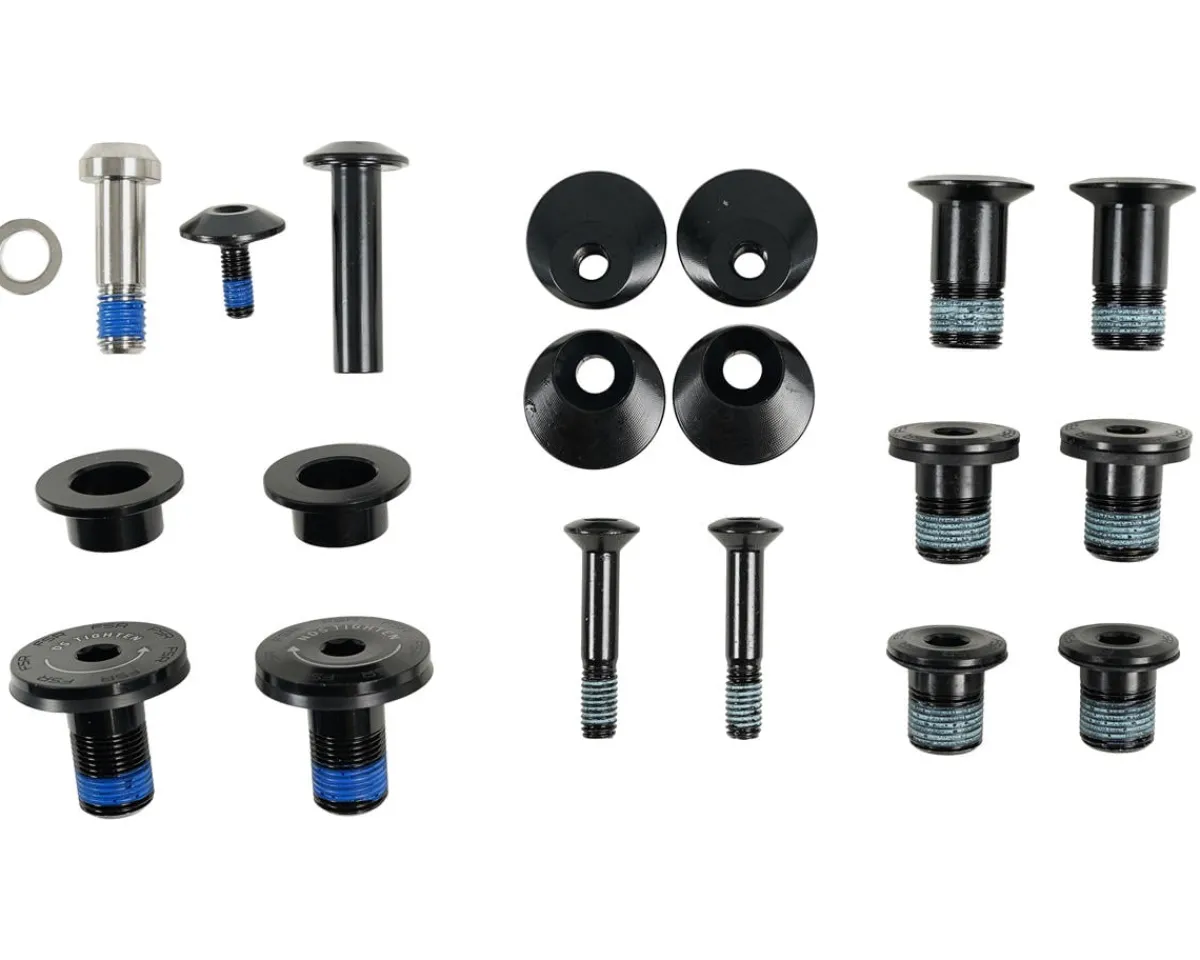

This Specialized Levo 4 Suspension Pivot Bolt Kit contains vital hardware utilized on select Specialized Levo 4 models.

Features:

• Pivot Bolt kit for select Specialized Levo 4 Models
• Includes:
• (1) Main Pivot Bolt (Driveside): M12 x 1.0P x 23mm Length – Right-hand / Standard Thread – .
• (1) Main Pivot Bolt (Non-Driveside): 1M2 x 1.0P x 23mm Length – Left-hand / Reverse Thread – 1 pcs.
• (1) Forward Shock Mount Axle: 8mm OD x 32.7mm Length
• (1) Forward Shock Mounting Bolt: M5 x 0.8P x 13.45mm Length
• (1) Rear Shock Mounting Bolt: M8 x 1.25P x 28mm Length (Titanium)
• (1) Rear Shock Bolt Washer: 8.4mm ID x 13mm OD x 0.5mm Thick
• Shock Link to Seat Tube Pivot Bolts: M12 x 1.0P x 17mm Length
• Shock Link to Shock Extension Pivot Bolts: M12 x 1.0P x 14mm Length
• Shock Link to Seat stay Pivot Bolts: M12 x 1.0P x 23mm Length
• Main Pivot Spacers: 12mm ID x 23mm OD x 9.6mm Thick
