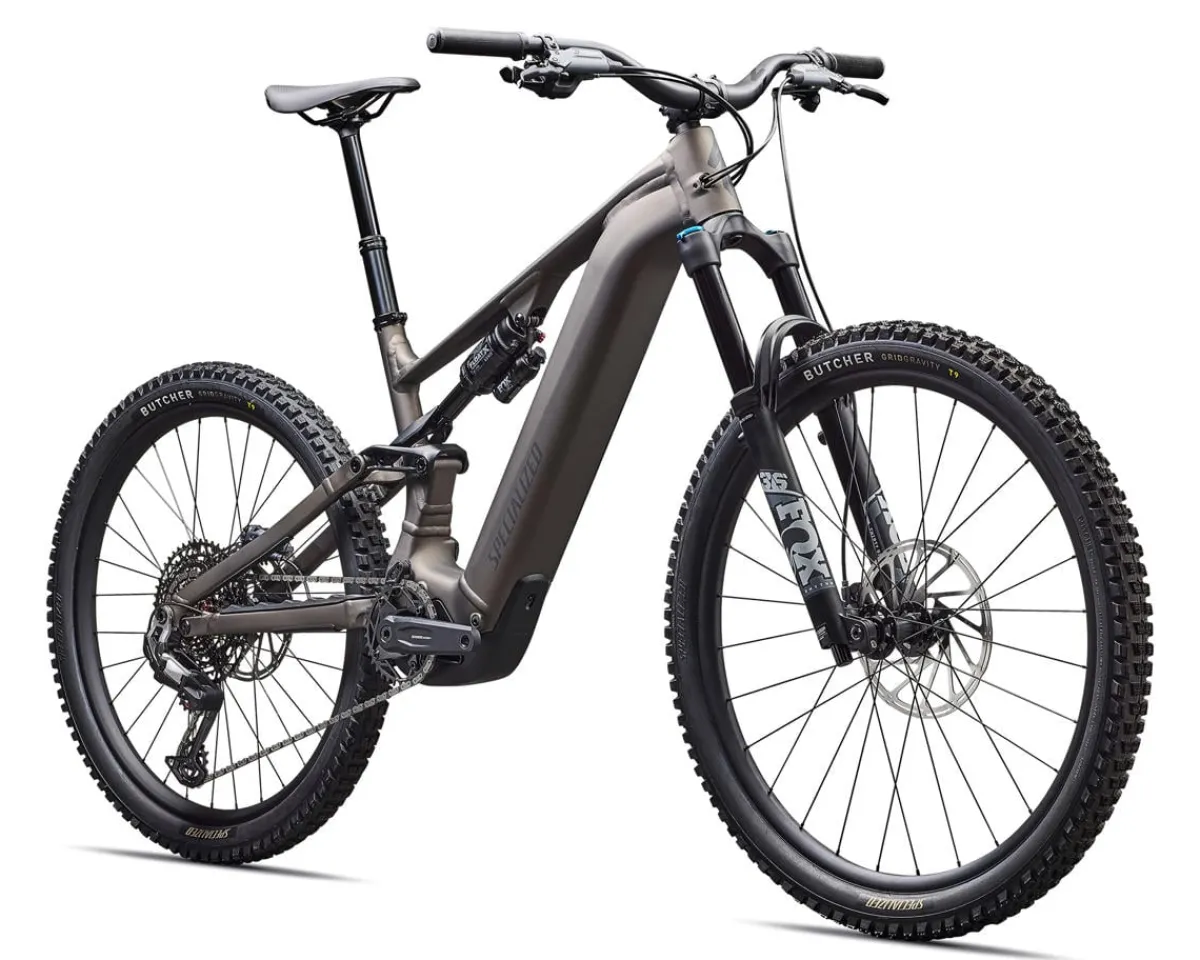

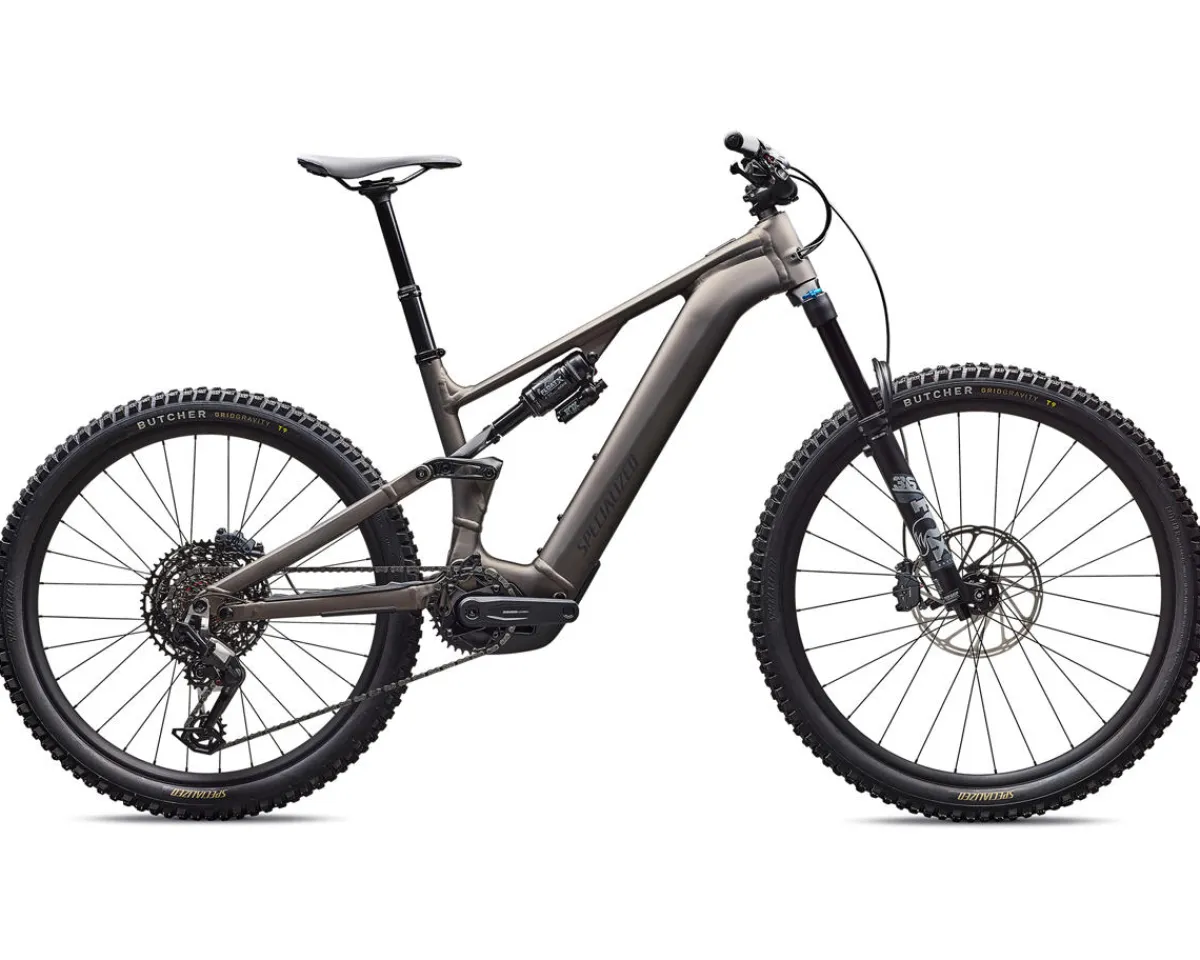

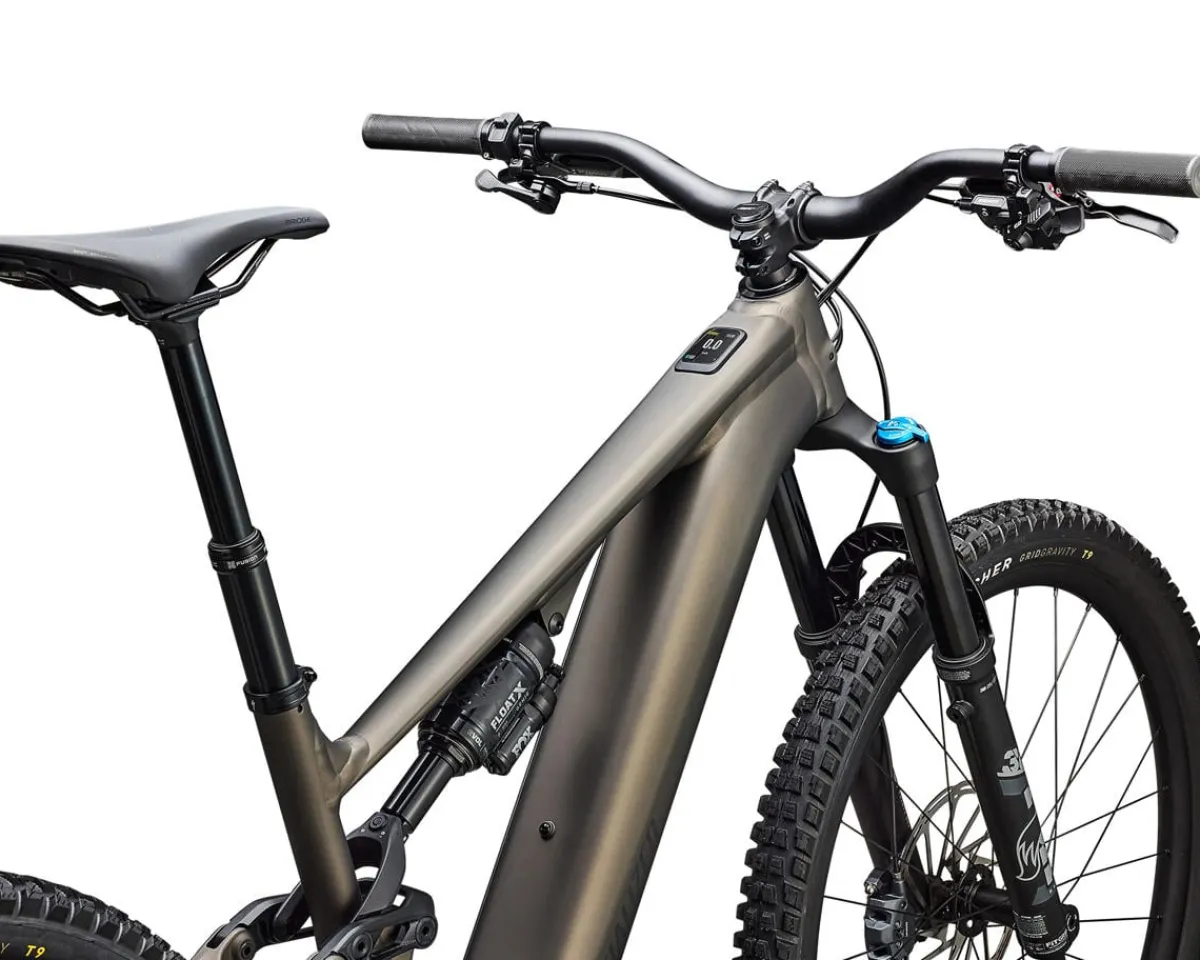

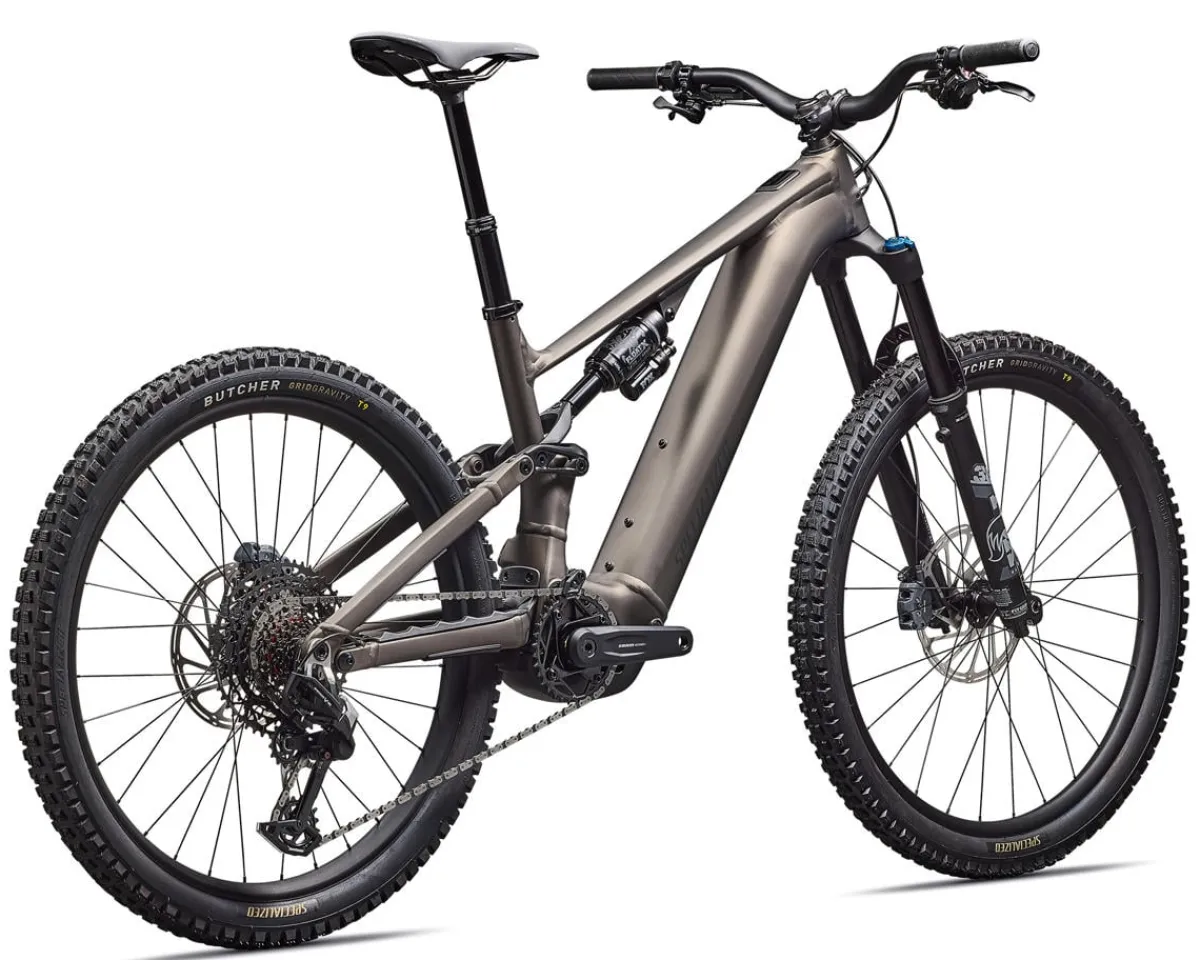

Specialized Mountain Bikes|E-Bikes|Turbo Levo 4 Comp Alloy E-Bike (Satin Gunmetal/Obsidian) (S1)

Specialized Turbo Levo 4 Comp Alloy E-Bike Description:

The Specialized Turbo Levo 4 Comp Alloy E-Bike delivers intuitive power and control that will unlock previously unknown capabilities on the trail. A premium M5 aluminum alloy chassis blends clean aesthetics with incredible strength and outstanding stiffness for pin-point handling control and power transfer. Specialized engineers have added a long, low, and slack geometry that puts the rider in a balanced position within the bike, and spec’d a steep seattube angle that works with the major muscle groups in the legs to generate explosive climbing and sprinting power. Furthermore, an adjustable headtube angle, bottom bracket height, and chainstay length allows the rider to fine tune the performance of the bike to suit their unique needs. Neatly tucked within the downtube, just below the SWAT tool/accessory storage, is an 840Wh battery that delivers a 4 to 5 hour operating range, and if this is not enough, an optional range extender battery can be attached to add an additional 90 minutes of run time. This large capacity battery is connected to a very powerful and torquey 3.1 mid-drive brushless motor and Mastermind TCU remote controller, delivering out of this world climbing capability, easy speed, and traction.

This remarkable frame and motor has been matched up with great parts spec that truly makes this beauty of an e-bike shine on the trails. A Fox 36 Rhythm fork provides 160mm of front travel, and out back is a Fox Float X Performance rear shock with custom Specialized GENIE internals/valving delivers 150mm of rear wheel travel to keep the rear end of the bike firmly planted when the trails start to get rowdy. SRAM’s Eagle 90 transmission mechanical drivetrain delivers a broad gear range, is easy and inexpensive to maintain, and provides precise shifting even under full power pedaling. When it is time to check the speed or come to a stop, a combination of large disc rotors and powerful 4-piston SRAM Maven Bronze hydraulic disc brakes deliver confident braking in any weather or trail conditions. Sturdy Specialized hookless and tubeless ready alloy wheels are wrapped in very grippy Specialized Butcher tires for a very durable combination that will deliver confident performance over a variety of trail conditions. Completing the parts list are an Xfusion Manic dropper post topped with a Specialized Bridge Comp saddle, a Specialized alloy handlebar and Trail stem, and lock-on style grips, ensuring the touch points get the same level of love and performance as the rest of this incredible e-bike. Specialized Turbo Levo 4 Comp Alloy; where natural feeling assist unlocks supernatural performance!

Features:

• Highly shaped/formed M5 Aluminum Alloy used in the construction of the front triangle, chainstays, and seatstays delivers a strong, stiff chassis that is ready to get rowdy
• Optimized to use a mixed wheel size set up, with a rear 27.5″ tucked under the rider for better traction and enhanced maneuverability, and 29″ up front so this bike can easily roll over anything
• Progressive geometry delivers very stable and confident handling straight out of the box, and an adjustable heat tube angle, bottom bracket height, and chainstay allows the rider to dial in the handling to suit their preferences
• Specialized 3.1 Motor delivers up to 810 Watts of power and up to 105 Nm of torque, enabling the rider to confidently buzz around any trail
• 840 W/h battery is discretely stashed inside the downtube, and it delivers up to a 5 hour operating range

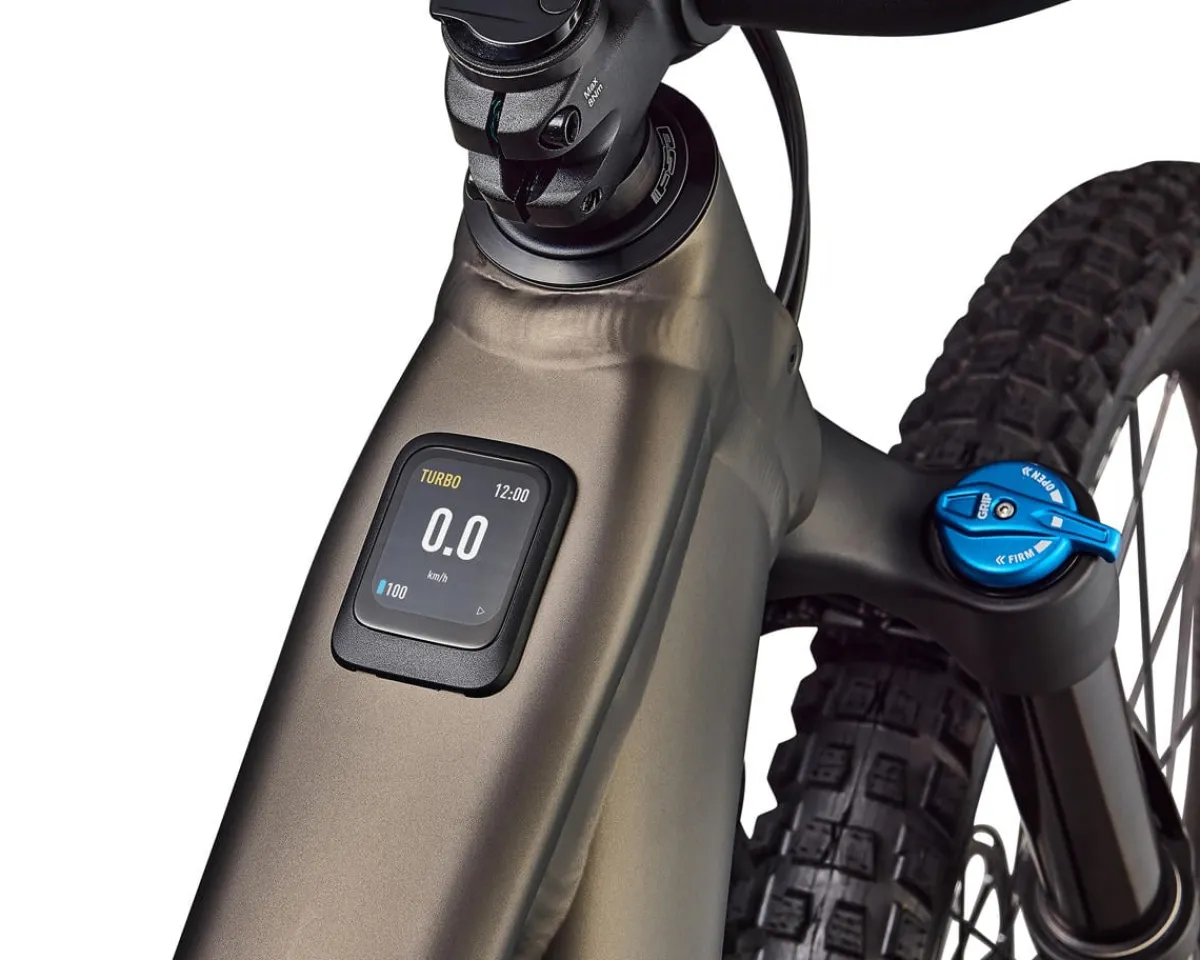

• 2.2″ high-resolution MasterMind T3 top tube display transmits vital ride data, presents options for fine-tuning of assist levels, and connects via Bluetooth to the Specialized app for total control
• SWAT Downtube storage lets tubes, tools, and other little knick knacks to be tucked inside the frame where it can be easily accessed as needed
• Fox Float 36 Rhythm suspension fork delivers 160mm of travel to keep the front of the bike planted over technical terrain

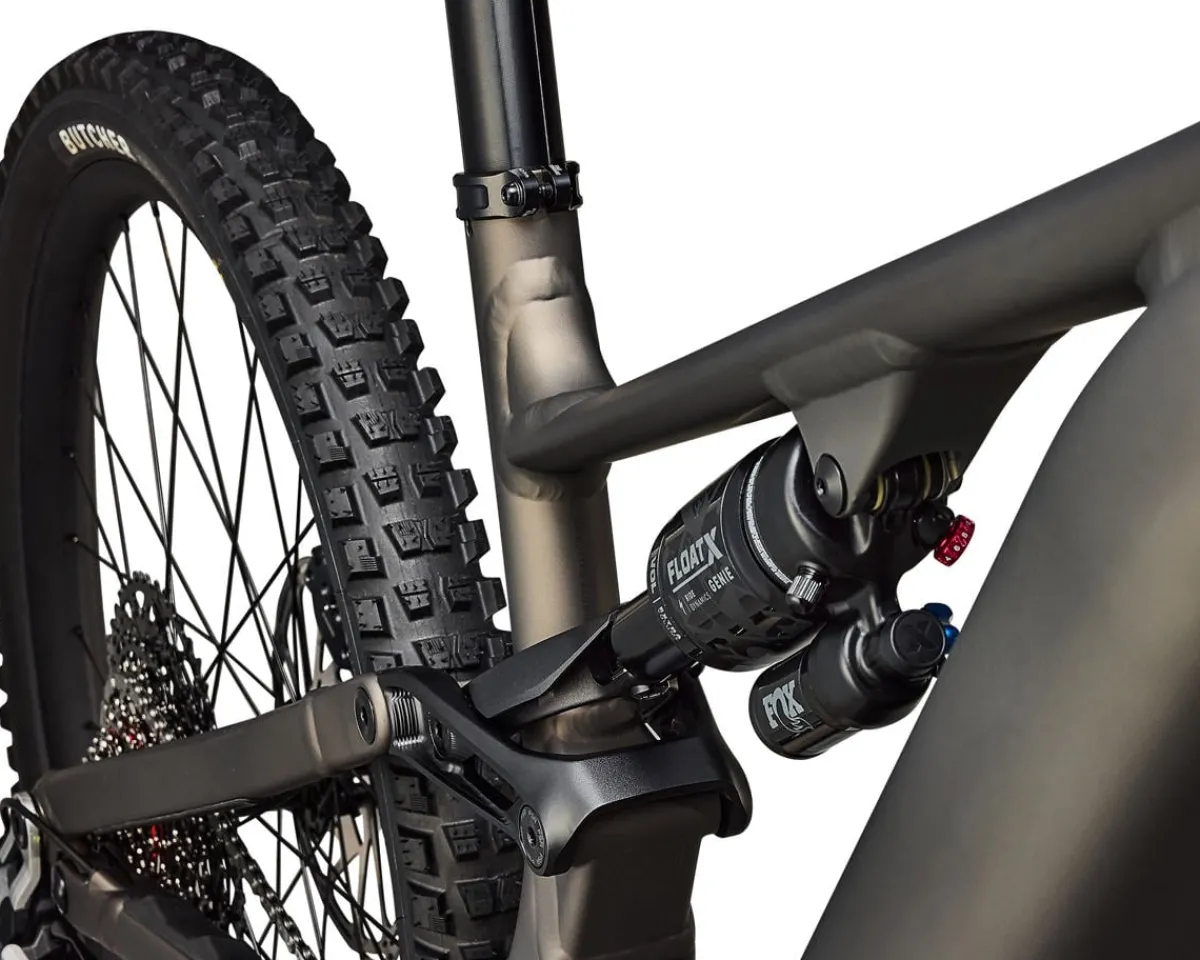

• Float X Performance rear shock with Specialized’s GENIE valving (providing 150mm of rear travel) enhances control through bump zones, prevents bottom-outs with a progressive spring curve, and can be tweaked to suit personal preferences and/or trail conditions
• SRAM Eagle 90 Transmission mechanical drivetrain delivers crisp shifting under full load and low maintenance costs, ideal for E-bike application
• SRAM Maven Bronze 4-Piston hydraulic disc brakes and large rotors deliver easy modulation and plenty of power on tap for controlling speed in any trail/weather conditions
• Sturdy tubeless ready Specialized alloy wheels feature a wide 30mm internal width to provide excellent support for large volume tires and these wheels roll on completely sealed cartridge bearings in the hubs for low rolling resistance and minimal maintenance
• Specialized Butcher tires utilize a robust GRID Gravity casing construction for excellent cut and puncture protection, and tacky Gripton T9 rubber compound works with the versatile tread pattern to deliver tenacious grip over a wide variety of trail conditions
• Xfusion Manic dropper seatpost drops the Specialized Bridge Comp saddle out of the way with a simple push of handlebar mounted remote lever, creating the room a rider needs to safely navigate technical terrain
• Includes a battery charger that plugs into the wall, ensuring this bike’s battery is ready to go

Specifications:

• Frame: Levo 4 Frame (M5 Alloy) (SWAT Storage) (Sealed Cartridge Bearing Pivots) (150mm Travel) (Adjustable Head Angle, BB Height, & Chainstay Length) (SRAM UDH Compatible)
• Fork: Fox Float 36 Rhythm (Grip Damper) (2-Position Sweep Adjustment) (S1: 150mm Travel; S2-S6: 160mm Travel) (44mm Offset) (15x110mm Thru Axle)

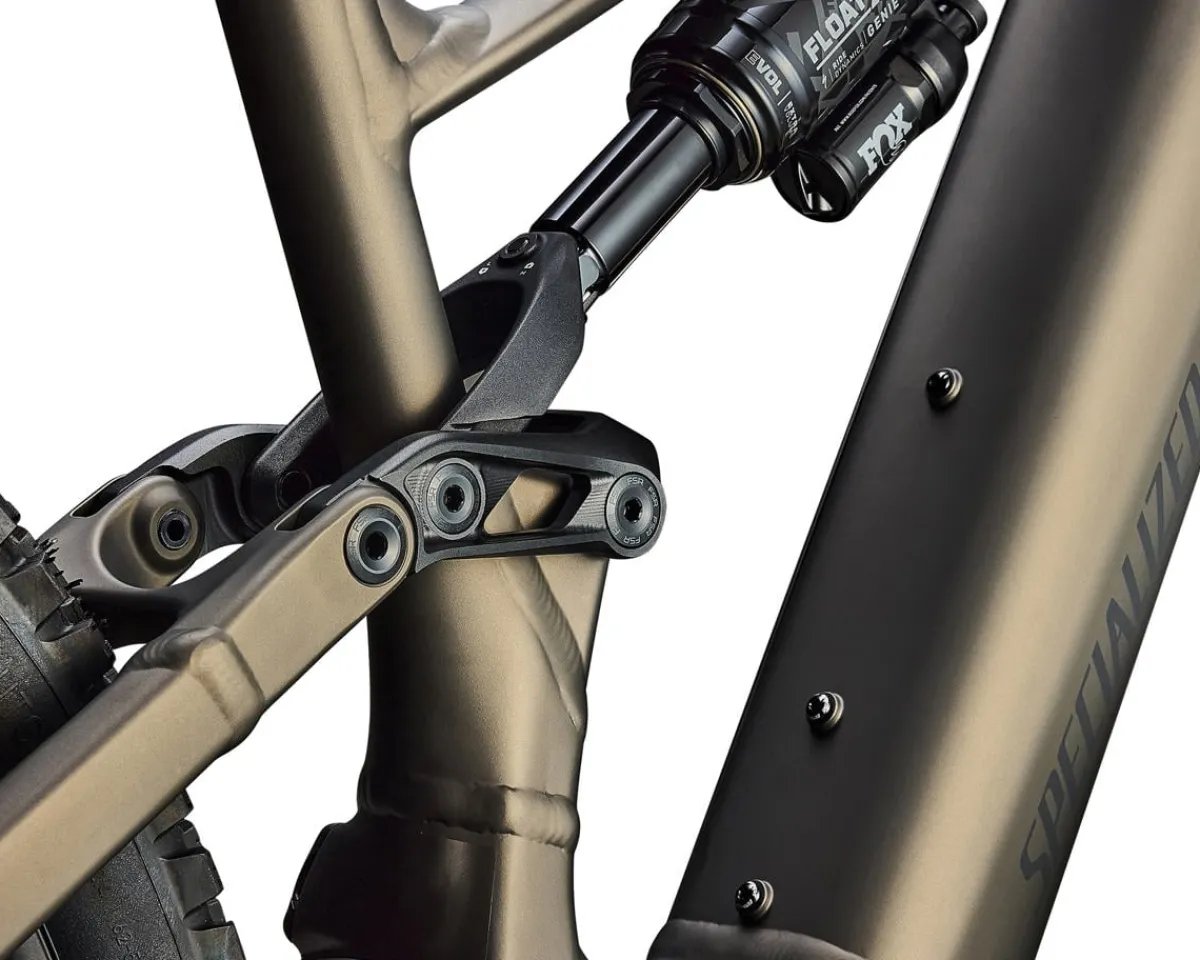

• Rear Shock: Fox Float X Performance w/ Specialized GENIE (Ride Dynamics Trail Tune) (2-Position Lever) (Low Speed Rebound Adjustment) (210 x 55mm)
• Headset: Tapered

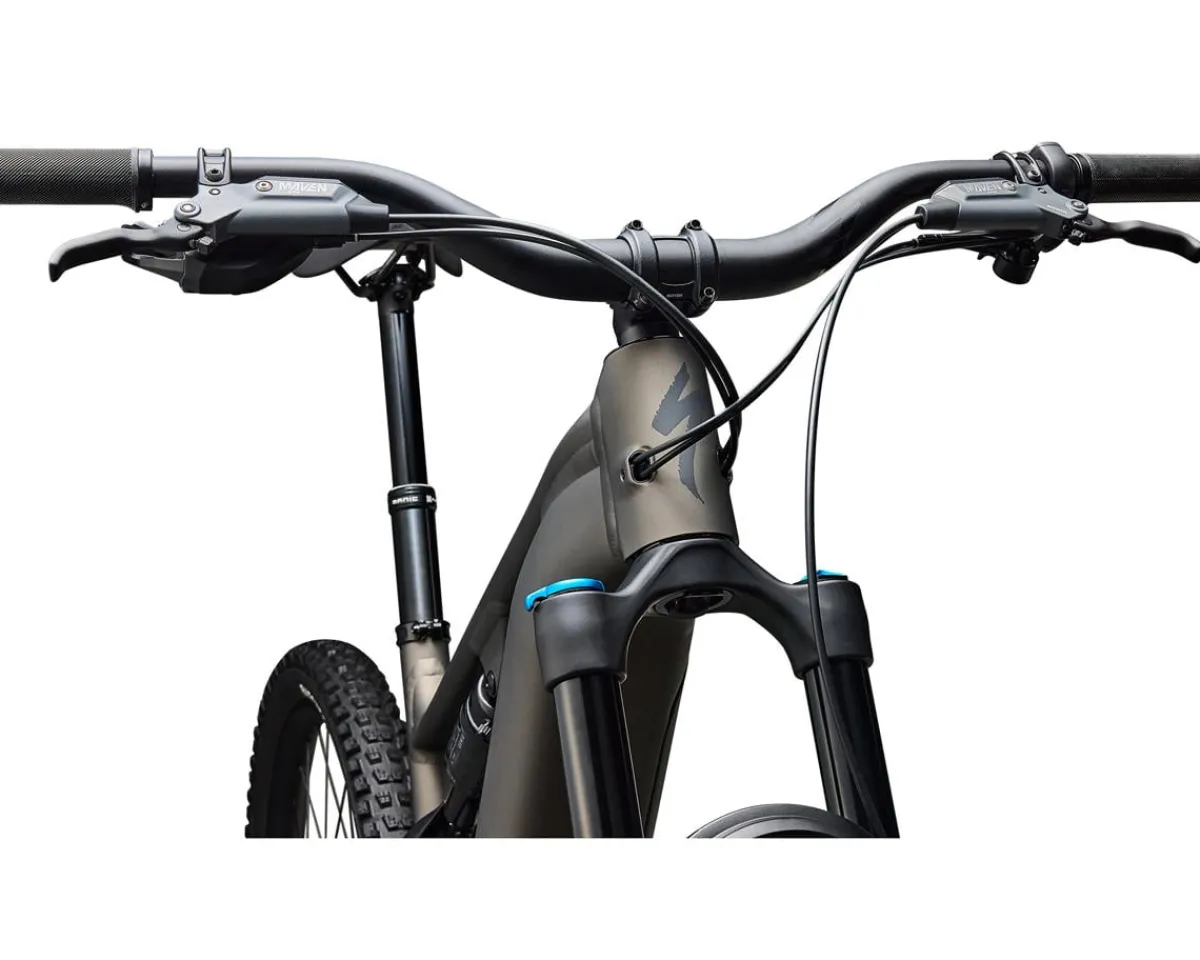

• Handlebar: Specialized 6061 Aluminum Alloy (6° Upsweep, 8° Backsweep) (S1-S2: 780mm width, 30mm Rise; S3-S6: 800mm width, 50mm Rise) (35.0mm)
• Grips: Specialized Trail Grips
• Stem: Specialized Alloy Trail Stem (35.0mm)
• Brake Levers: SRAM Maven Bronze (Hydraulic)
• Rotors: SRAM Centerline (220mm-Front; 200mm-Rear)
• Brakes: SRAM Maven Bronze (4-Piston Caliper) (Hydraulic Disc)
• Shifter: SRAM 90 Eagle Trigger (Mechanical) (12-Speed) (Single-Click)
• Rear Derailleur: SRAM Eagle 90 T-Type (Mechanical) (12 Speed)
• Crank: SRAM S1000 Cranks (155mm) (Integrated Guard) (55mm Chainline) (ISIS Interface) (T-Type 34T Steel Chainring; 104 BCD)
• Bottom Bracket: –
• Cassette: SRAM (12 Speed) (10-52T)
• Chain: SRAM 70 Transmission Flattop
• Pedals: –
• Saddle: Specialized Bridge Comp (Hollow Cr-mo Rails)
• Seatpost: Xfusion Manic (Infinitely Adjustable) (2-Bolt Head) (Remote SLR LE Lever) (S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm)
• Rims: Specialized Alloy (Hookless) (30mm Internal Width) (Tubeless-ready)
• Front Hub: Alloy (Sealed Cartridge Bearings) (6-bolt) (15x110mm) (32h)
• Rear Hub: Alloy (Sealed Cartridge Bearings (6-bolt) (12x148mm) (32h)
• Spokes: DT Swiss Industry Stainless Steel (J-Bend)
• Front Tire: Specialized Butcher (Grid Gravity Casing) (Gripton T9 Compound) (Tubeless ready) (29 x 2.4″)
• Rear Tire: Specialized Butcher (Grid Gravity Casing) (Gripton T9 Compound) (Tubeless ready) (27.5 x 2.4″)

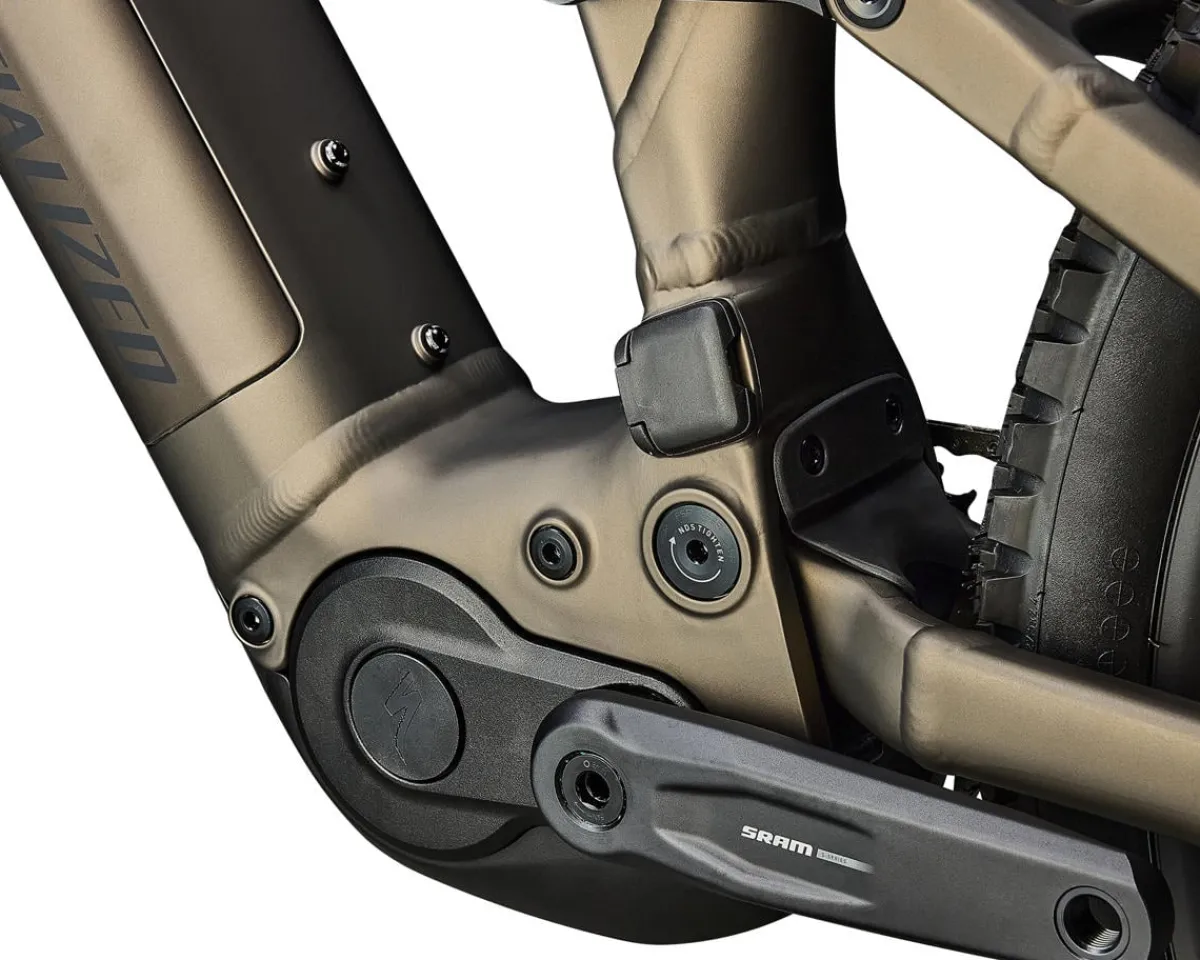

• Motor: Specialized 3.1 Motor (105Nm/810W)
• UI/Remote: Mastermind T3 (2.2″ High Resolution Screen) (Fully Customizable w/ Specialized App)
• Battery: Specialized Turbo (Integrated) (840Wh)
• Charger: Specialized 4 Amp Charger
• Model Year: 2026
• Color: Satin Gunmetal / Obsidian
• Weight: 56 lb, 11.2 oz (S4)
