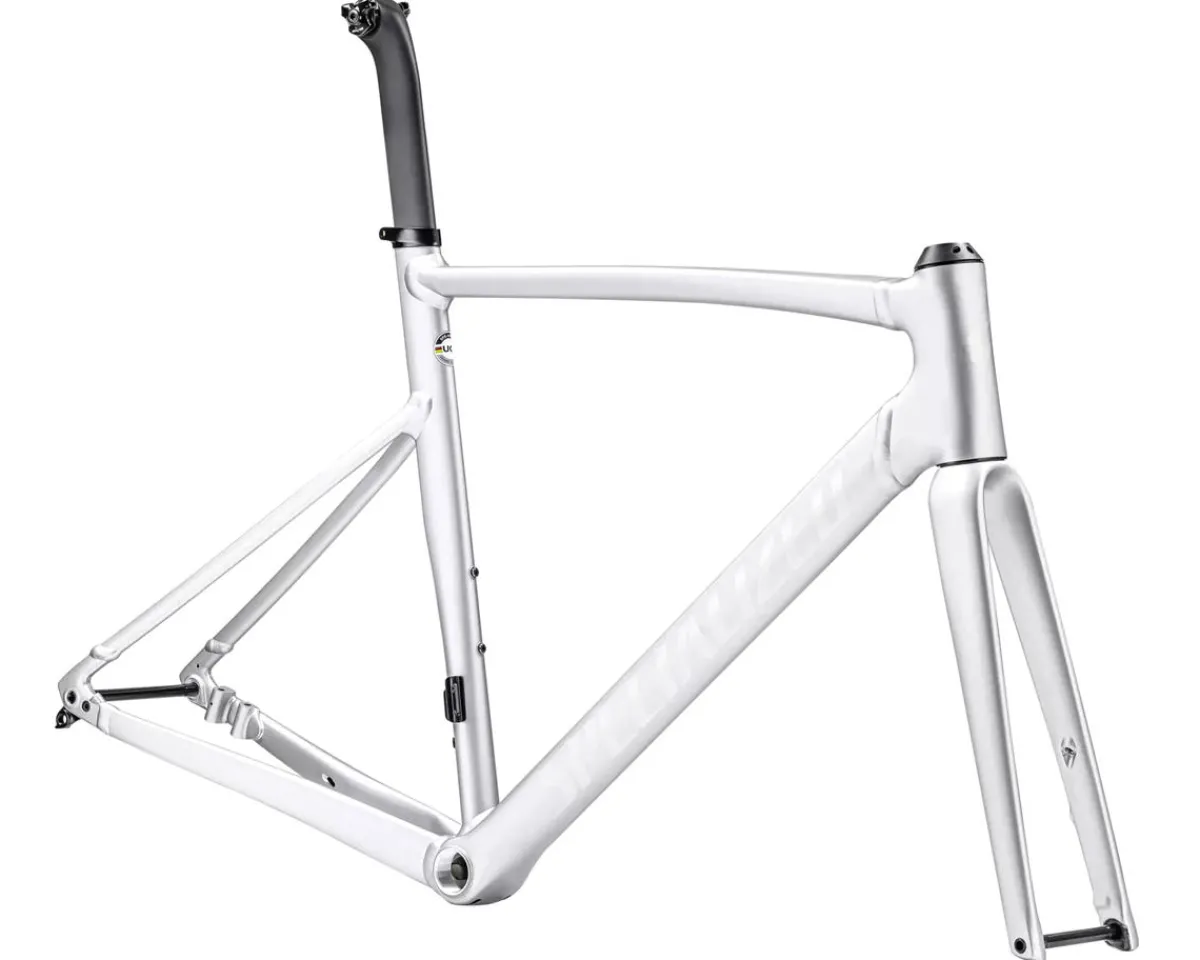

Specialized Frames|Road Bikes|Allez Sprint Frameset (Silver Dust/Transparent Decals) (61cm)

Specialized Allez Sprint Disc Road Frameset Description:

The Specialized Allez Sprint Disc road frameset draws many benefits straight from the Tarmac SL7 and its extensive wind tunnel testing. The Allez Sprint boasts a whopping 41-second gain over 40km from the previous model thanks to details like the complex tube and integrated cable routing. A one-piece downtube and bottom bracket delivers high-level efficiency and stability. Balancing power to the pedals with stability and control at the bars keeps you fast and confident. With dropped seat stays as well as the Tarmac SL7’s carbon seatpost and fork, the Allez Sprint is supple in the saddle and precise at the cockpit, making it as efficient as it is comfortable. Hydroforming the bottom bracket and downtube from a single piece of alloy and putting the frame together with Smartweld technology gives any superbike a run for its money.

Features:

• Hydroformed one-piece bottom bracket and downtube make the Allez Sprint efficient and precise
• Dropped seat stays and the Tarmac SL7’s seatpost and fork keep the weight down and the handling high
• Smartweld technology allows for a better-welded joint, and stronger welded areas, keeping the weight to a minimum
• Compatible with both aero and traditional stems
• Compatible with both electronic and mechanical groupsets

Specifications:

• Frame Material: Specialized E5 Premium Aluminum Frame (D’Aluisio Smartweld) (Flat-Mount Disc) (Threaded Bottom Bracket)
• Fork Material: FACT Carbon (12 x 100mm Thru-Axle) (Flat-Mount Disc)
• Headset: Included
• Headset SHIS: S162500005 (Upper and Lower Replacement Bearing)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Flat Mount
• Rotor Compatibility: 140 or 160mm (Front and Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front), 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8”
• Seatpost: S-Works Tarmac Carbon Seatpost (FACT Carbon) (20mm Offset) – Included
• Seatpost Diameter: Specialized D-Shaped
• Seatpost Clamp: Alloy Sprint Seat Collar
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: 1x or 2x Electronic & Mechanical
• Chainring Compatibility: Maximum chainring size: 1 x 52T or 2X 55T
• Tire Clearance: Maximum tire size is 32mm
• Cable Routing: Internal
• Dropper Post Routing: No
• Water Bottle Bosses: 2 Mounting Positions (Downtube & Seattube)
• Fender/Rack Mounts: Not compatible with front or rear racks, Clip on fenders only
• Model Year: 2023
• Color: Silver Dust/Transparent Decals
• Weight: 1370g (54cm)

Includes:

• Frame & Fork
• (1) Headset
• (1) Seatpost (300mm included with sizes 49-56cm, 380mm included with size 58-61cm)
• (1) Seatpost Collar
• (1) Derailleur Hanger
• (1) Front Derailleur Mount Backing Plate (For use with 2x drivetrain)
• (1) Front Derailleur Mount Cover (For use with 1x drivetrain)
• (2) 12mm Thru Axles (100mm Front, 142mm Rear)
