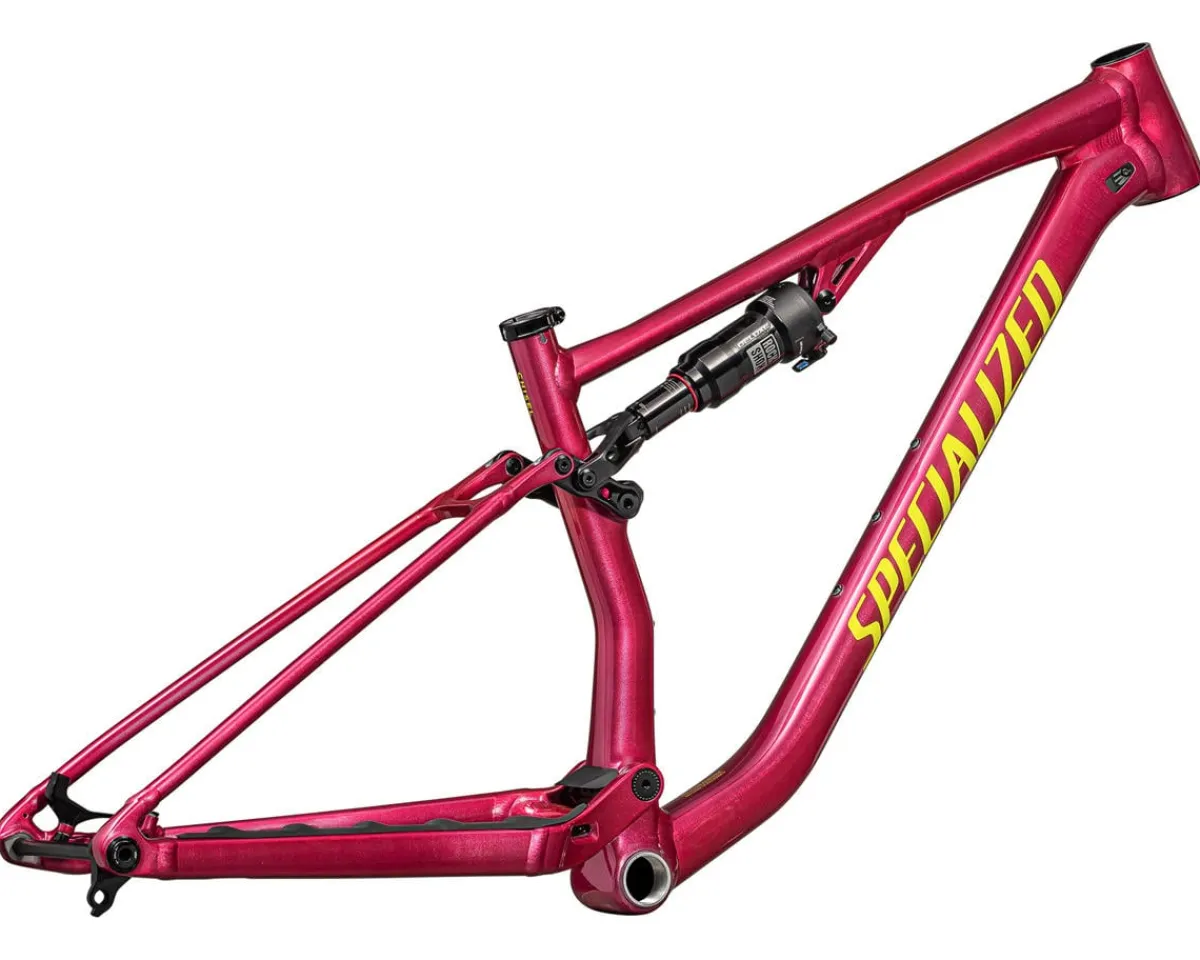

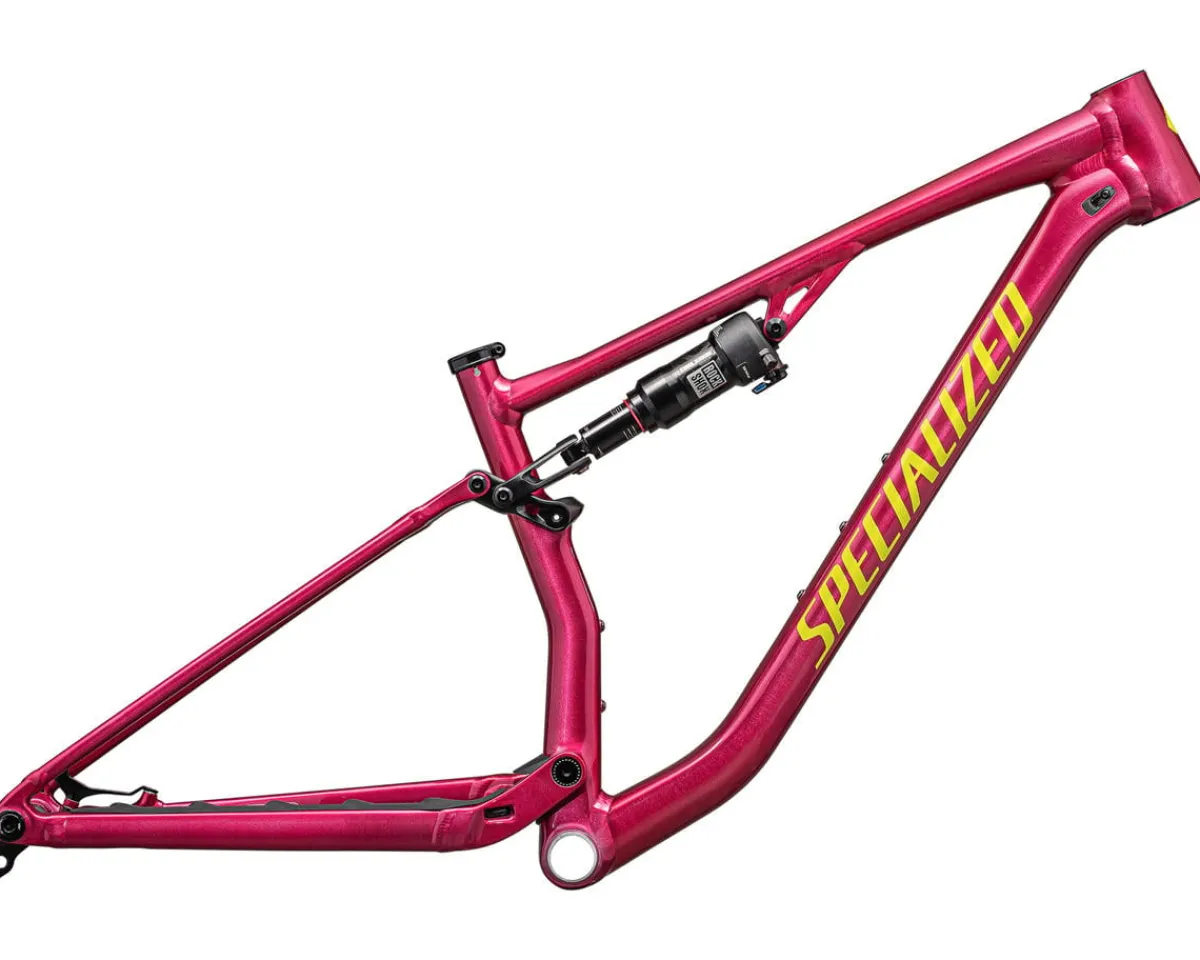

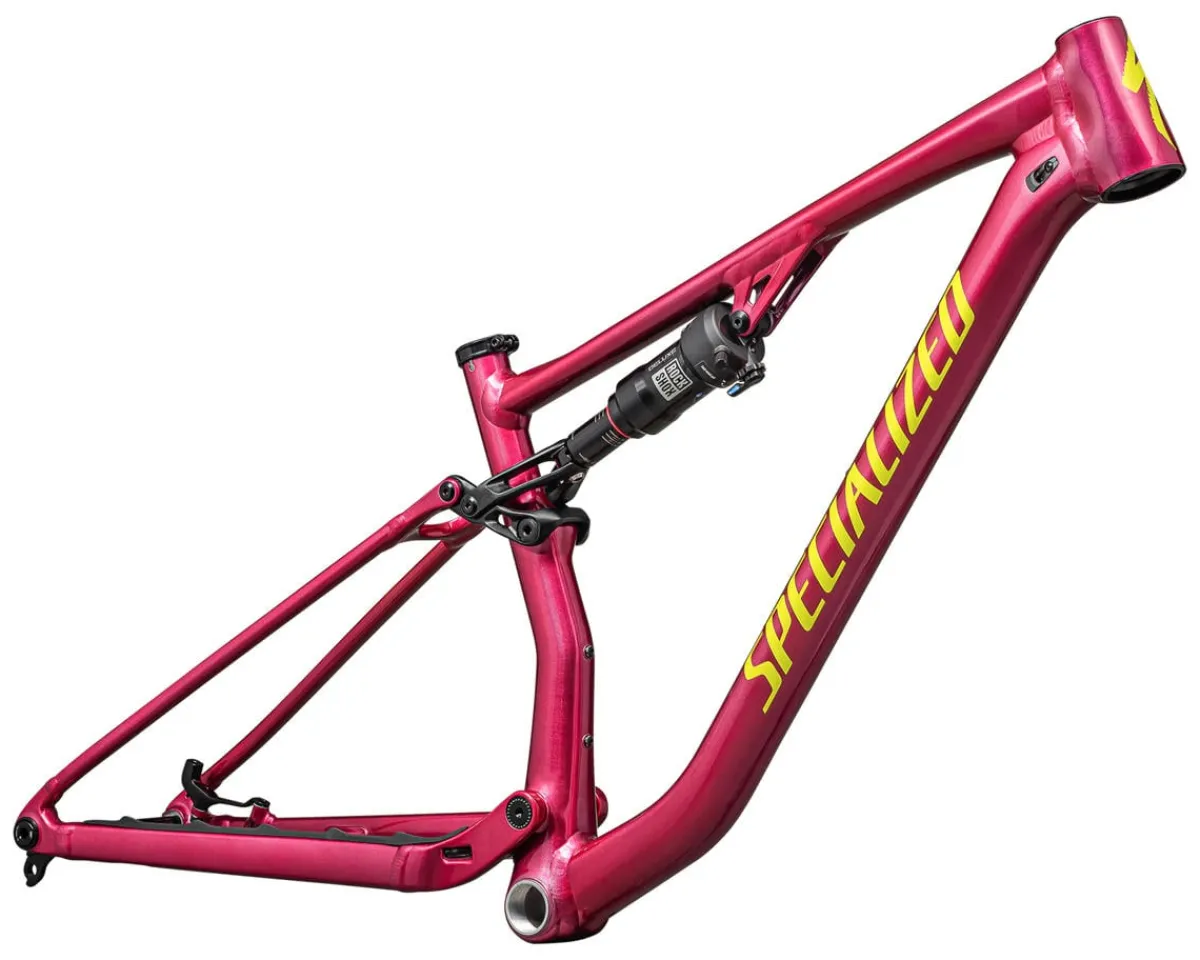

Specialized Frames|Mountain Bikes|Chisel Frameset (Gloss Rebel Pink) (XS)

Specialized Chisel Frameset Description:

The Lightest, Fastest Alloy Full Suspension Bike in the World. 18.4% lighter than the closest competitor and sharing geometry and kinematics from our World Cup ready Epic 8 mountain bike, the Chisel delivers performance you can feel—whether you’re racing “between the tape” or ripping solo hot laps on local trails.

Features:

• SPEED METAL: Thanks to D’Aluisio Smartweld, the Chisel boasts the lightest aluminum XC frameset in its class. Each highly-manipulated frame tube features continuously-varied wall thicknesses and shaping that deliver stiffness where you need it – for efficiency – and ride-smoothing compliance where you want it – for comfort and optimal control.
• UNMATCHED CAPABILITY: With 110mm of Ride Dynamics tuned suspension, the high performance pedigree of Chisel can be traced directly to the Epic 8, Specialized’s World Cup race machine. DNA from the Epic 8’s advanced suspension kinematics, Ride Dynamics tuned suspension, and progressive geometry honed on technical World Cup courses can all be found in the Chisel, making it more than capable of handling varied terrain with confidence and speed.
• INCREDIBLE EFFICIENCY: Chisel is the most efficient pedaling bike in its class, thanks to the utilization of geometry and kinematics that went into Specialized’s World Cup racing Epic 8 platform. The steep seat tube positions the rider in the optimal pedaling position. Honed anti-squat reduces pedal-bob. Put it together and Chisel translates every watt applied to the pedals into maximum forward motion.
• SMOOTHER IS FASTER: We engineered a flex stay rear end for class-leading suspension performance, while eliminating the extra weight and maintenance associated with pivots required in a traditional design. More common on carbon bikes, extensive field and lab testing prove that Chisel has achieved the impossible—the efficiency, control, and light-weight of a flex stay design, in advanced alloy.
• HYDROFORMED ALLOY: Chisel shaves extra material and weight with a one-piece hydroformed seat tube that integrates the seat tube pivot, main pivot, and BB shell. On a more traditional bike, the seat tube is typically just a “tube” with pivots and BB shell welded on.
• Frame – D’Alusio Smartweld hydroformed tubes and engineered tube junctions, Flip chip geo adjust, 110mm travel
• Ride Dynamics Tuned Rockshox Deluxe Select+ rear shock

Specifications:

• Frame: Specialized D’Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
• Shock: RockShox Deluxe Select+, Ride Dynamics Tuned, Two Position, Rebound Adjust, 190x40mm
• Compatible Fork Travel: 120 or 130mm
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Post Mount
• Rotor Compatibility: 160mm (180mm with custom Chisel adapter)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 148mm (Boost)
• Seatpost: Not Included
• Seatpost Diameter: 30.9mm
• Seat Collar Diameter:34.9mm
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 73mm
• Drivetrain Compatibility: Electronic and Mechanical
• Chainring Compatibility: Min: 30T, Max 34T (52mm Chainline)/36T (55mm Chainline)
• Tire Clearance: 2.4″
• Cable Routing: Internal
• Dropper Post Routing: Yes
• Water Bottle Bosses: 2 Bottles (size XS only 1 bottle)
• Fender/Rack Mounts: No
• Front Derailleur Mount: None
• Rear Derailleur Hanger: Included (SRAM UDH)
• Model Year: 2025
• Color: Gloss Rebel Pink Tint Organic Brushed / Satin Ion Metallic
• Weight: 2.72kg (Size M)
