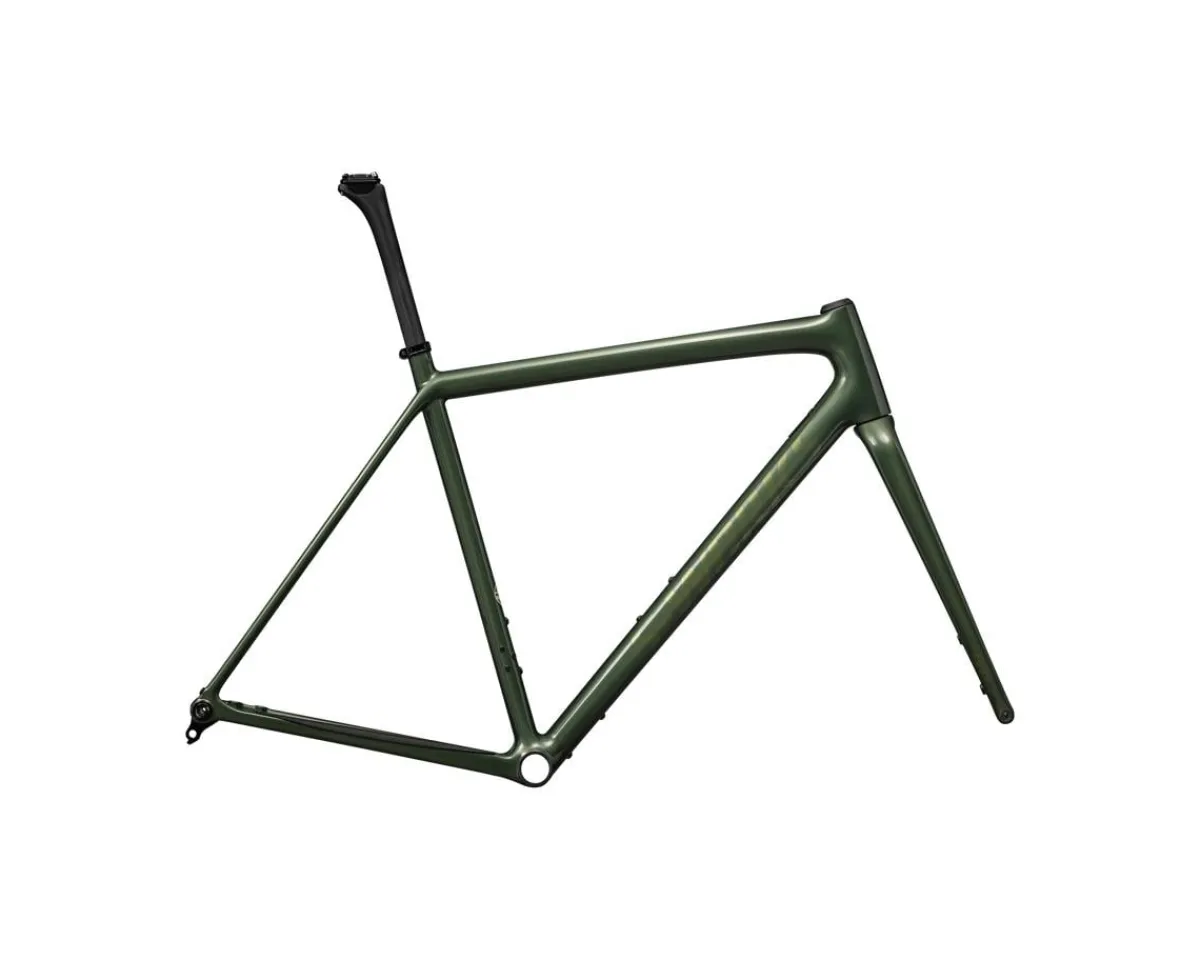

Specialized Frames|Gravel Bikes|S-Works Crux Frameset (Gloss Cypress Metallic) (61cm)

Specialized S-Works Crux Gravel Frameset Description:

The Specialized S-Works Crux is designed to power up climbs, dominate the flats, and shred the descents. Specialized has created a frame for a gravel bike dream build that is capable of flying over nasty gravel roads with insane tire clearance all while remaining lightweight and ready to race. Sharing the same technology as the popular Aethos, the Crux brings the ultimate in gravel experience to the next level. The nimble, supple, and responsive characteristics of the frame make the Crux a one-way ticket to gravel enlightenment.

Features:

• Ultra lightweight 12r carbon frame tipping the scale at 725g (= less then one full water bottle)
• Shared technology from the Aethos to create the ultimate dream gravel bike
• Clean lines and simple design transfers to fast, light, and capable
• Exceptional tire clearance up to 700 x 47mm or 650b x 2.1”
• Responsive handling, supple over rough terrain, and incredible power transfer to the rear wheel
• Performance gravel race geometry

Specifications:

• Frame Material: S-Works Crux FACT 12R Carbon (Rider First Engineered) (Threaded BB) (Flat-Mount Disc) (12 x 142mm Thru Axle)
• Fork Material: S-Works FACT Carbon (Flat-Mount Disc) (12 x 100mm Thru Axle)
• Headset: Included (S092500002-Upper | S162500005-Lower)
• Headset Bearing Size: 41.8mm (O.D) X 30.5mm (I.D.) X 8mm (Upper) | 49.5mm (O.D) X 40.5mm (I.D.) X 6.5mm (Lower)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical
• Brake Mounts: Flat Mount
• Rotor Compatibility: 140 or 160mm (Front) | 140 or 160mm (Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front) | 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Roval Alpinist Carbon
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Specialized Alloy (30.0mm) (Titanium Bolt)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: 1x Electronic & Mechanical, 2x Electronic Only (SRAM AXS 2x will limit tire clearance to 42mm)
• Chainring Compatibility: Fits most 42T chainrings and some 44T chainrings
• Tire Clearance: 700c x 47mm, 650b x 2.1”
• Cable Routing: Internal
• Dropper Post Routing: Yes (Mechanical port on top of downtube)
• Water Bottle Bosses: 3 Mounting Positions (Seattube, Downtube Top, Downtube Bottom)
• Fender/Rack Mounts: No
• Front Derailleur Mount: Braze-On
• Rear Derailleur Hanger: Included
• Model Year: 2025
• Color: Gloss Cypress Metallic/Viavi Gold to Silver Pearl
• Weight: 1430g (56cm)
