Shimano Wheels & Parts|Deore FH-QC500-MS-B Rear Disc Hub (Black) ( Micro Spline) (Centerlock) (QR x 141mm) (32H)

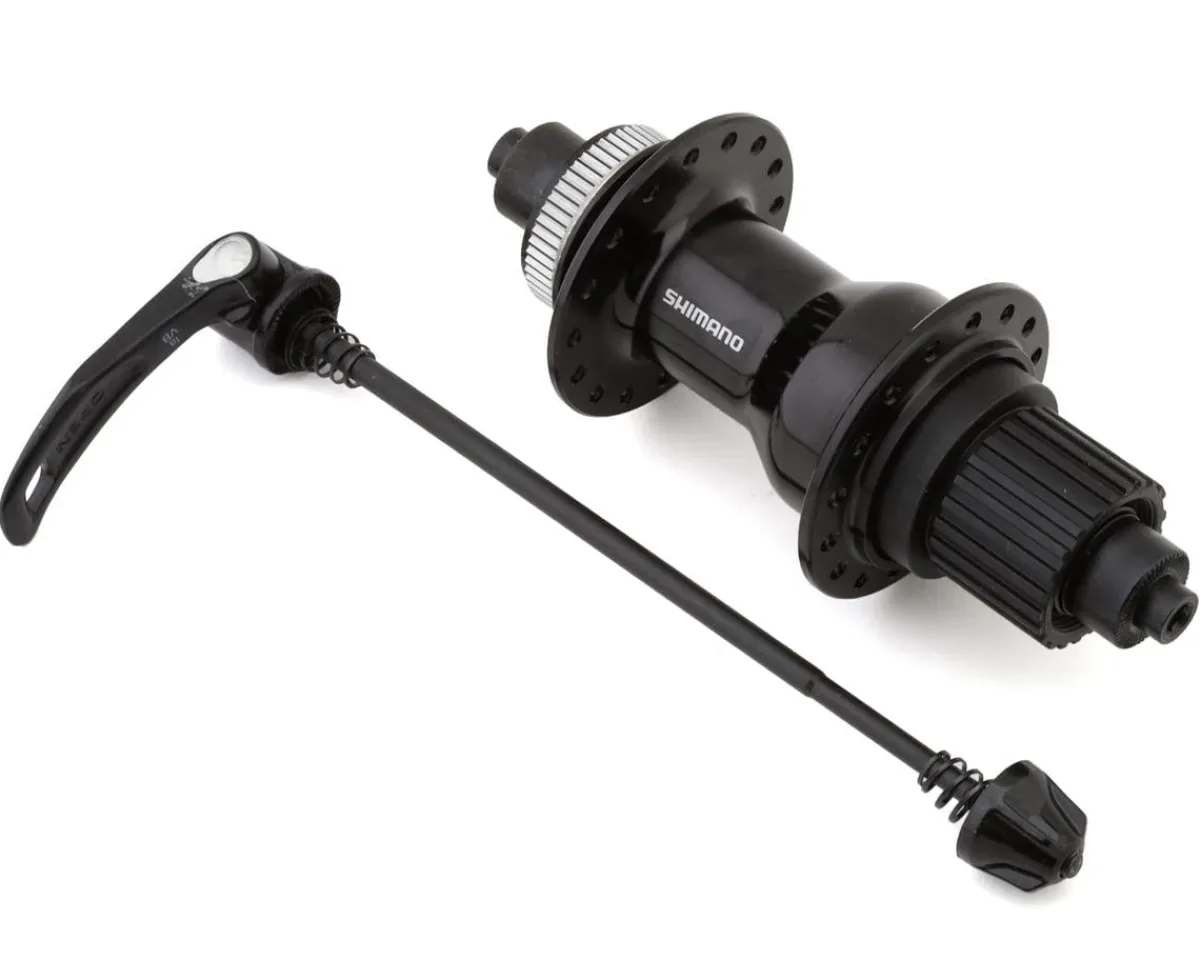

Shimano Deore FH-QC500-MS-B Rear Disc Hub Description:

The Shimano Deore FH-QC500 Rear Disc Hub is a reliable and durable hub designed to withstand trail riding and city street commuting with quality cartridge-sealed bearings. Center Lock technology is a simple and effective way to install the rotor with ease. Shimano Micro Spline is 12-speed compatible and utilizes a 10T highest cog for the widest gear range possible. The uniqueness of this hub is the 141mm over locknut dimension, only a handful of bikes use this technology making the Deore FH-QC500 a great replacement option.

Note: Lockring is not included with hub.

Features:

• Unique 141mm O.L.D dimensions meet the specifications on specific rear wheel dropout measurements
• Labyrinth + Contact seals keep out contaminants
• Center Lock allows for quick rotor installation
• Micro Spline uses a 10T cog on a 12-speed cassette for the widest gear range possible
• Quick release lever and adjusting nut are made from light alloy
• Cartridge sealed bearing make for easy servicing

Specifications:

• Position: Rear
• Brake Type: Rim Brake, Disc Brake (Centerlock)
• Axle Type: Quick Release
• Hub Spacing: 10 x 141mm
• Spoke Count: 32H
• Spoke Type: J-Bend
• Left Side Flange Diameter: 59.3
• Right Side Flange Diameter: 60.3
• Left Side Center to Flange: –
• Right Side Center to Flange: –
• Bearing Type: Sealed Cartridge
• Color: Black
• Weight: –
