Shimano E-Bike Parts|Shifters|STEPS SW-E8000 Assist Switch Unit (Black) (Left) (W/Out E-Tube Wire)

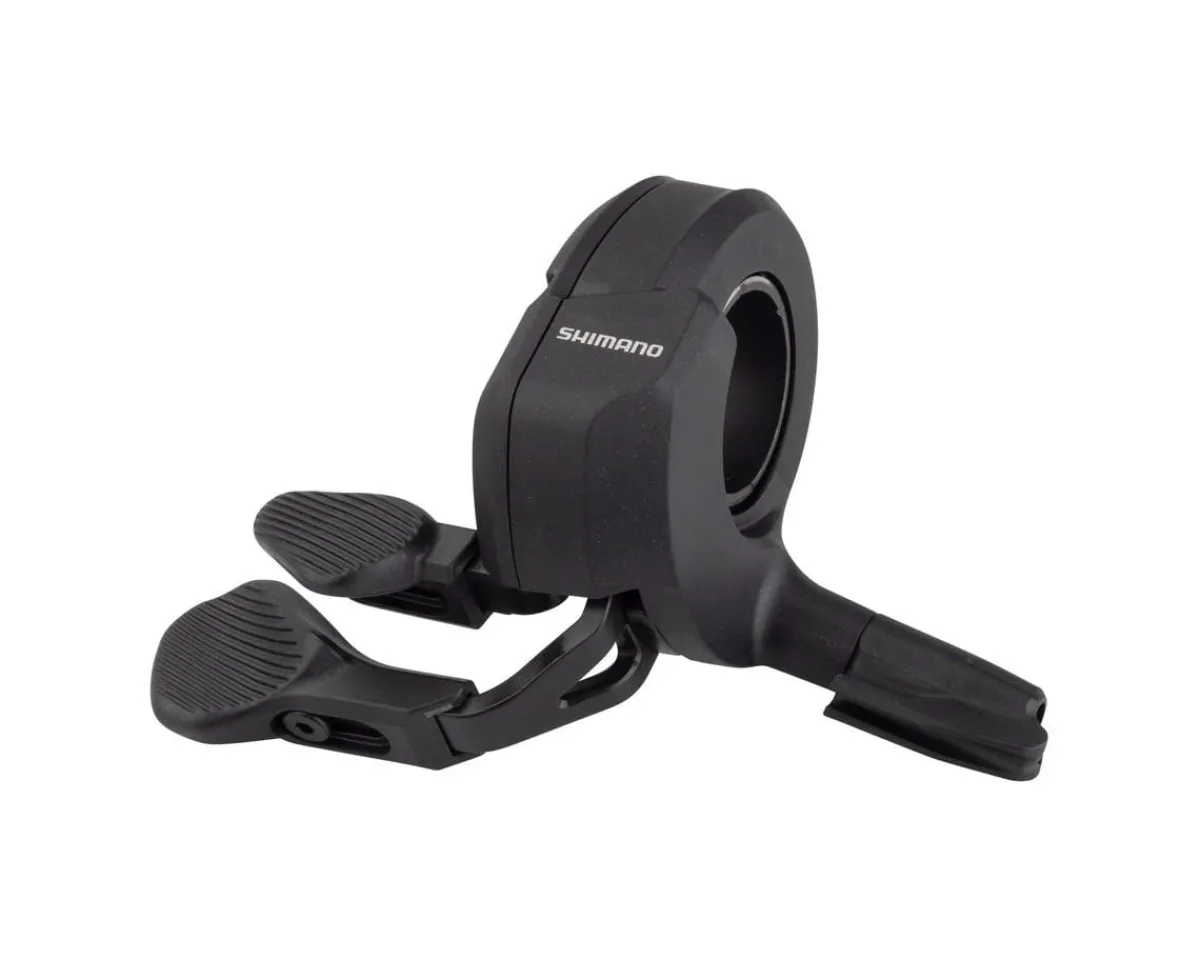

Shimano STEPS SW-E8000 Assist Switch Unit Description:

The Shimano STEPS SW-E8000 Assist Switch Unit is designed to mimic the feel of a shifter pod, but instead of changing a bicycles gears, the levers of this switch unit will control the power assist levels of an e-bike equipped with Shimano STEPS drive system. Each switch unit features two large and tactile levers that are easy to activate and thanks to Firebolt technology, each push of a lever will provide clear feedback that a change to an e-bikes power level has been made. The low profile handlebar clamp is designed to clear most of Shimano’s hydraulic and even some mechanical brake levers, and this switch unit has a SD50 style connector port to make it easy to wire this switch unit into a STEPS e-bike drive system.

Features:

• Designed to mimic the shifter paddles on the other side of handlebars so fingers use a similar motion to activate the controls
• Firebolt technology provides a vivid click feeling
• Switch unit controls the power assist levels on Shimano STEPS e-bike drive systems, and can be used to activate walk assist modes (motor assist when pushing bike)
• SD50 connector port accepts E-Tube wires from the e-bike drive system/display unit (E-Tube wires sold separately)

Specifications:

• Shifter Style: Trigger Shifters
• Speed: –
• Derailleur Compatibility: –
• Shift Mechanism: Electronic (Wired)
• Color: Black
• Weight: 94g
