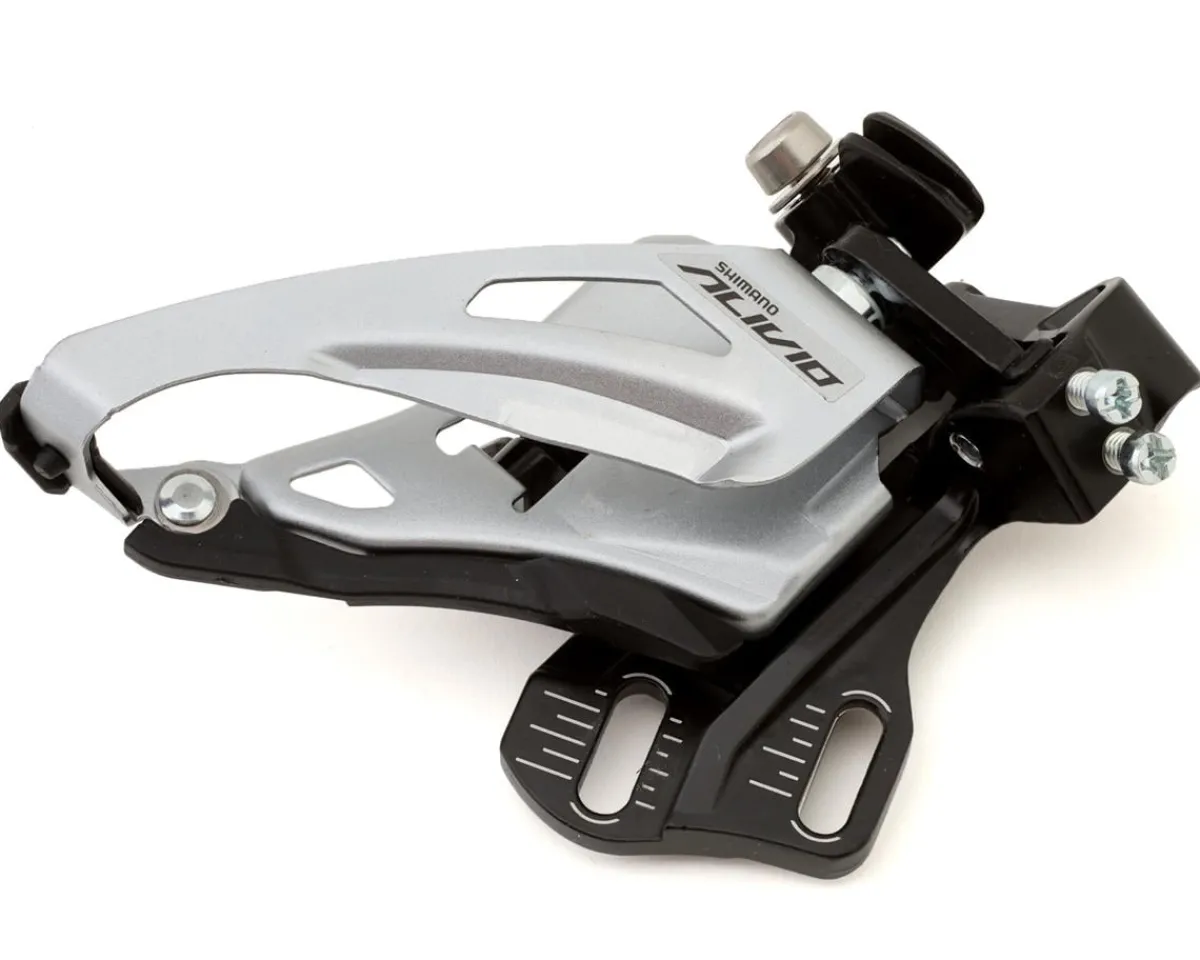

Shimano Derailleurs & Parts|Alivio FD-M3120 Front Derailleur (2 x 9 Speed) (E-Type) (48.8 – 51.8mm) (Side Swing) (Front Pull)

The Shimano Alivio FD-M3120 2 x 9-speed front derailleurs use Shimano’s new Side Swing for enhanced cable routing, light action, and smooth operation. The design also increases clearance for large wheels and short chain stays.

Features:

• Designed for front double chainring cranksets
• Smooth and quiet front shifting in all conditions
• Powerful outward shifting
• Wide range for use with front double 36T/22T chainrings
• Compatible with 2.3″ tires on wider rims
• Direct Mount and E-Type models have adjustable chainlines whereas the clamp band models are available in fixed chainlines of either 48.8mm or 51.8mm

Specifications:
Speed: 2 x 9 Speed
Shifter Compatibility: Shimano Mountain
Shift Mechanism: Cable Actuated
Front Derailleur Style: Side Swing
Max Chainring: 36T
Derailleur Capacity: 14T
Chainline: 48.8mm, 51.8mm, or 48.8 – 51.8mm
Chainstay Angle: 64 – 69º
Color: Silver/Black
Weight: –
