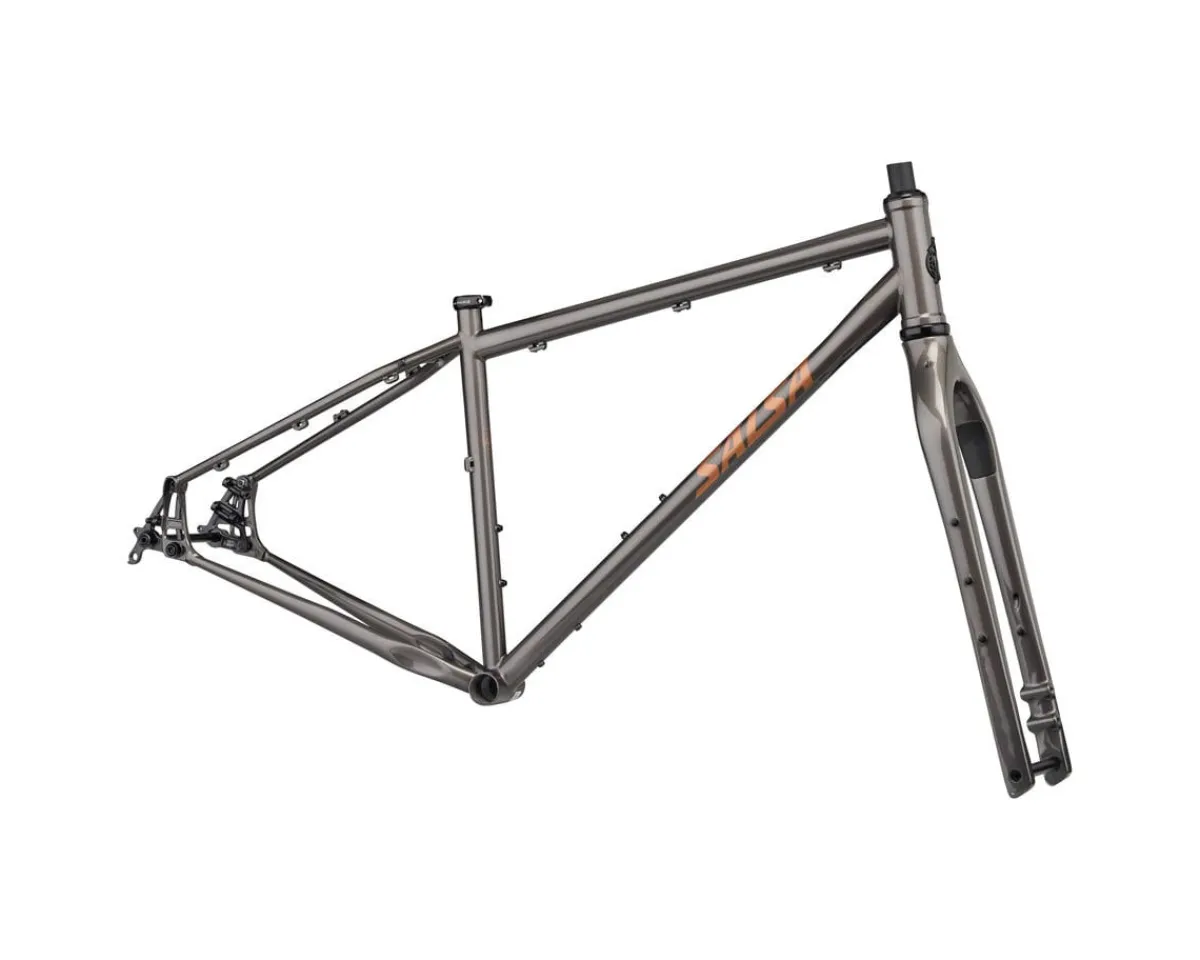

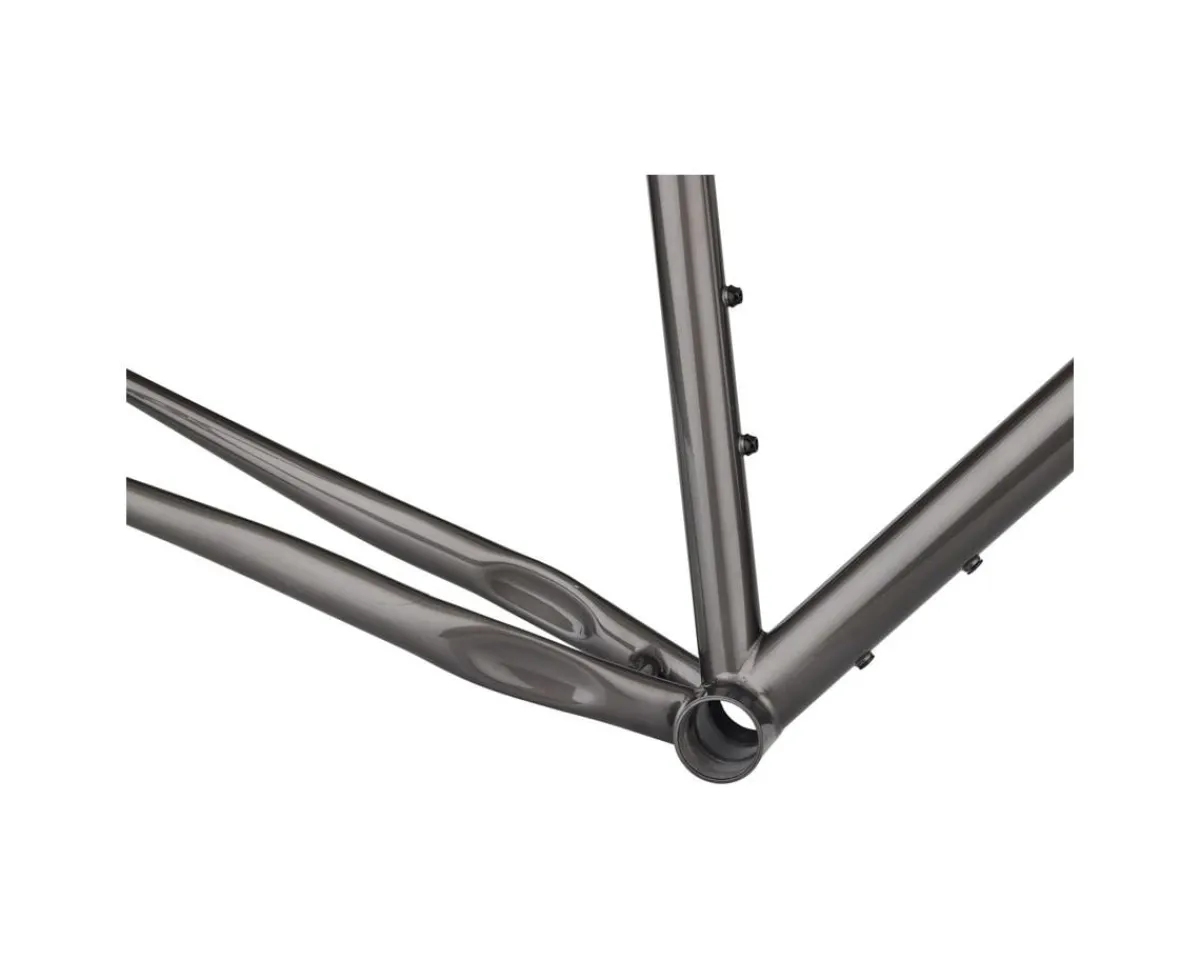

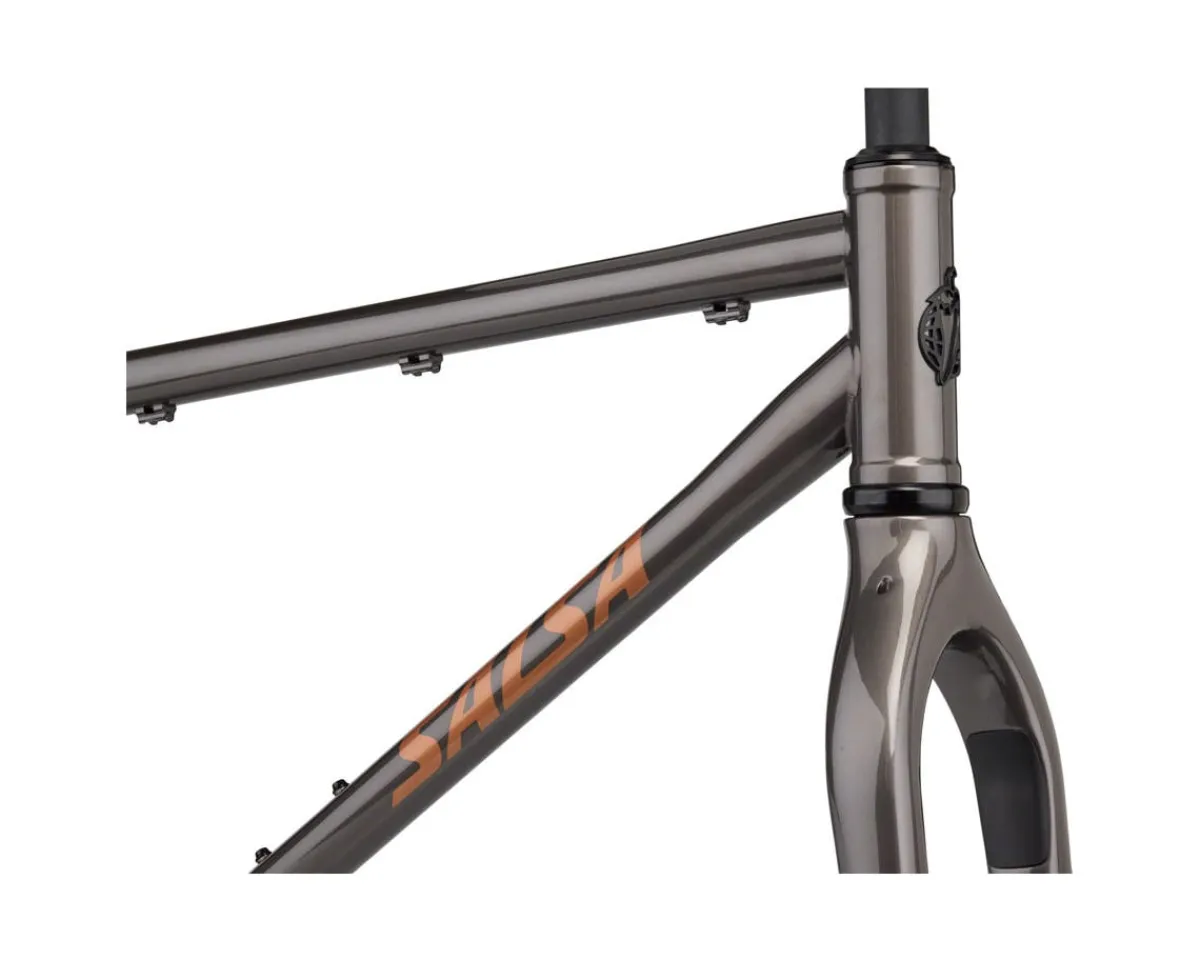

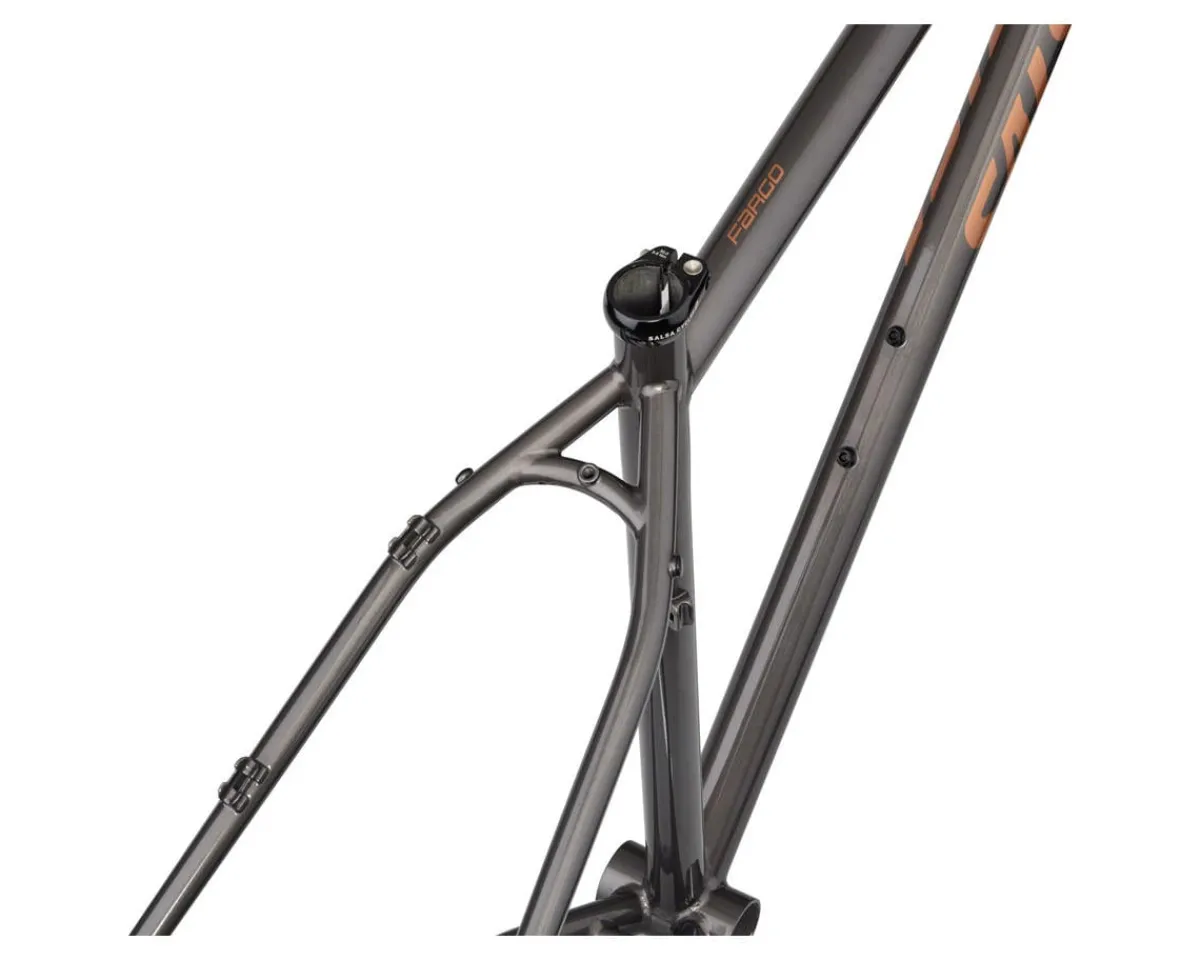

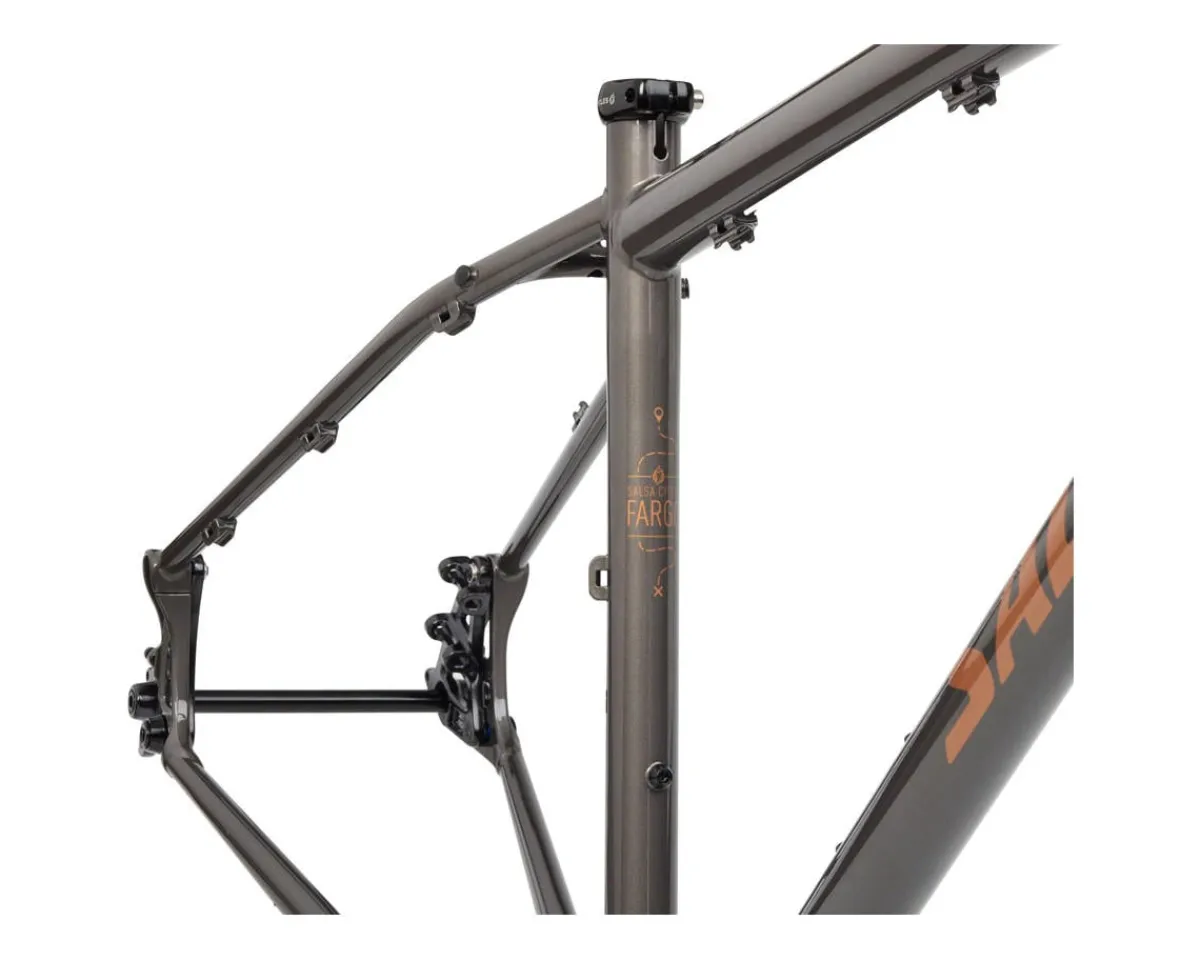

Salsa Frames|Mountain Bikes|Fargo Steel Frameset (Graphite) (XS)

Salsa Fargo Steel Frameset Description:

The Salsa Fargo Steel Frameset is a sturdy and versatile steel drop-bar mountain option, designed with approachable, yet agile geometry and oodles of cargo options. The heart of this remarkable machine is a sturdy and smooth-riding triple-butted chromoly frameset with adjustable Alternator 1.0 Flat Mount dropouts that allow the wheelbase to be tweaked to optimize the handling and ride quality to suit a rider’s needs and preferences. Ample tire clearance enables widths up 3.0″ on 29″ wheels, or mount fenders and retain the ability to run tires up to 2.2″ in width for the ultimate mixture of off-road capability and coverage. Up front, a Firestarter 110 High Modulus Carbon Fiber fork adds stiffness, resulting in better control of the bike while also reducing vibrations transmitted up from the road/trail, and the sides of the fork are adorned with various mounts for cargo and other accessories. Users looking to bring every trail essential need not worry, as Fargo Steel framesets provide a multitude of frame mounting options for bottle cages, direct mount bags, and more. When used in combination with cargo racks, Fargo Steel Framesets transform into a formidable commuter or the ultimate world-touring rig.

Features:

• Triple-butted chromoly steel frame tubes vary in thickness throughout Fargo, optimizing weight and producing a comfortable, lively ride

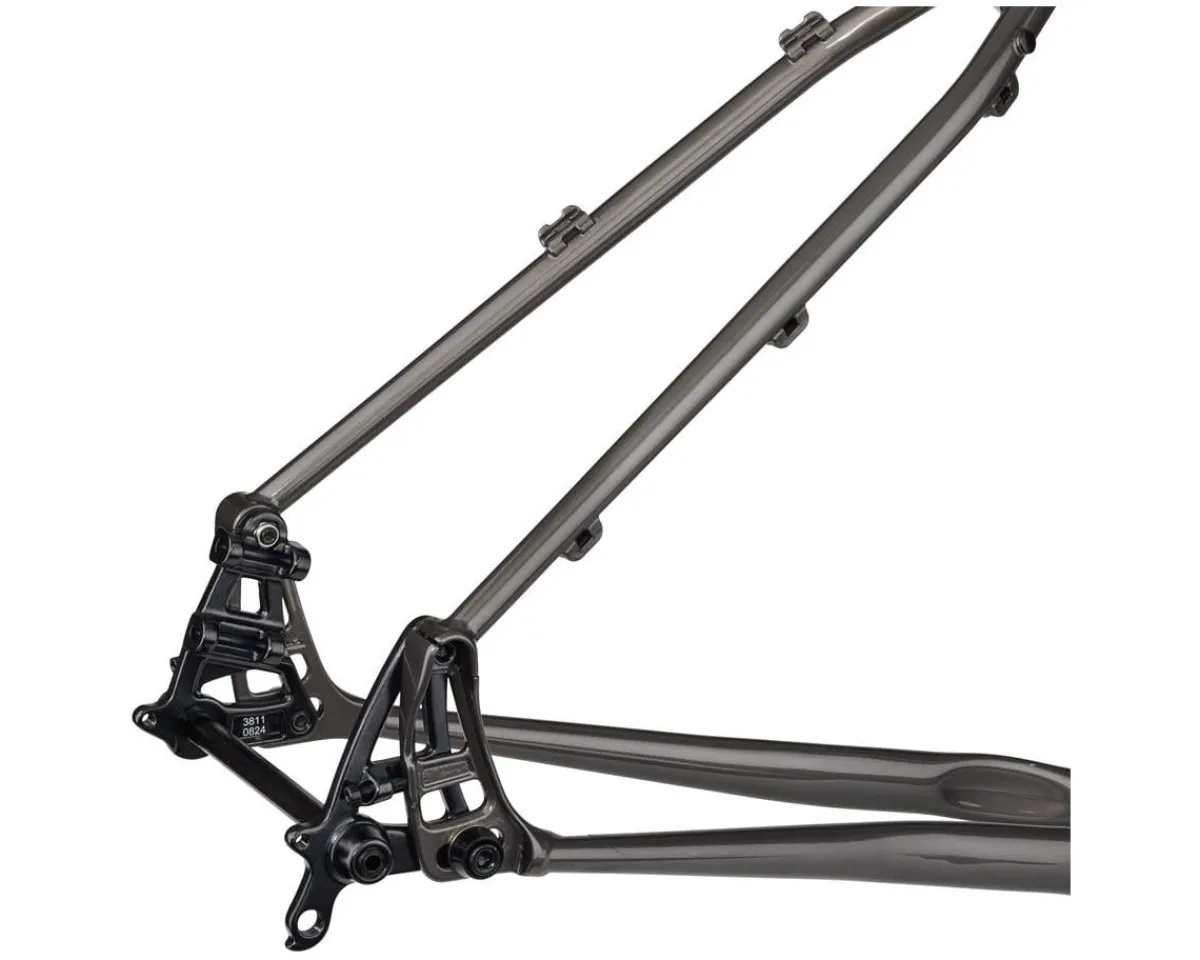

• Alternator 1.0 Flat Mount dropouts can adapt position, enabling fine-tuning of handling, tire clearance, and catering to various hub and drivetrain configurations
• Carbon fiber Firestarter 110 absorbs trail/road buzz, and features two sets of Three-Pack mounts, internal dynamo cable routing, and abrasion-resistant plates
• Front and rear fender mounts, eligible for use with tires up to 2.2″ in width, provide all-weather protection from trail spray
• Rear rack and low-rider fork rack compatibility extends cargo options for long-haul bike adventures or fully-outfitted bike commuting
• Externally routed, full-length derailleur and brake cable housing keeps grit and grime from impacting the shifting and braking performance
• SRAM UDH Alternator 1.0 configuration extends compatibility to SRAM Transmission drivetrains, including XPLR 13-speed rear derailleurs
• 73mm bottom bracket shell width encourages wider SRAM DUB crankset spindles for better tire clearance and shifting performance
• 3 water-bottle cage boss sets (2 on XS bikes/frames) give options for cargo personalization, an ideal choice for touring or commuting
• Frame and fork enable use of 27.5+, 29+, or 29″ wheels and up to 3.0″ wide tires, or 2.2″ wide tires with fenders (29 x 2.6″ max on XS frames)

Specifications:

• Frame Material: Triple-butted CroMoly Steel
• Fork Material:Carbon
• Headset: FSA Orbit ITA (Included)
• Headset Size: ZS44/28.6 (Upper), EC44/40 (Lower) (Tapered) (1-1/2” to 1-1/8”)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical
• Brake Mounts: Flat Mount
• Rotor Compatibility: 160 or 180mm (Front), 140 or 160mm (Rear)
• Axle Type: Thru Axle
• Hub Spacing: 15 x 110mm (Front), 12 x 148mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (30mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 73mm
• Drivetrain Compatibility: 1x Electronic & Mechanical, 2x Electronic and mechanical
• Chainring Compatibility: 1x, 2x (Mountain)
• Tire Clearance: 29″ wheels: 41–76mm (1.6″–3.0″) SM – XL; 41–66mm (1.6″ – 2.6″) XS 27.5″ wheels: 47–76mm (1.85″–3.0″) 26″ wheels: 70–76mm (2.75″–3.0″)
• Cable Routing: Internal
• Dropper Post Routing: No
• Water Bottle Bosses: 3 Mounting Positions (Seattube, Downtube Top, Downtube Bottom)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 34.9 Clamp
• Rear Derailleur Hanger: Included
• Model Year: 2025
• Color: Graphite
• Weight: 7.69lbs
