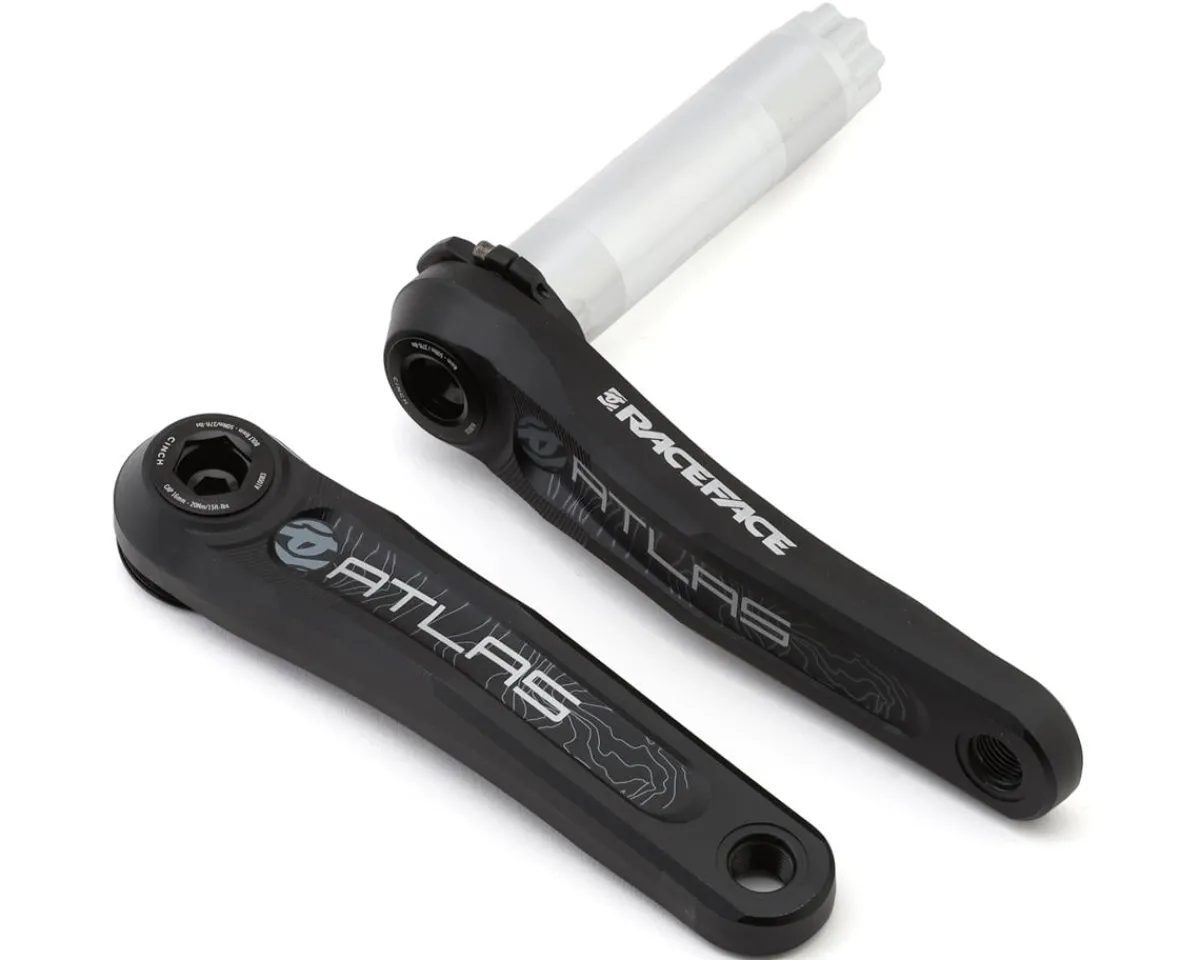

Race Face Cranksets & Parts|Atlas Cinch Crankset (Black) (10-12 Speed) (30mm Spindle) (165mm) (Direct Mount) (SuperBoost)

Race Face Altas Cinch Crankset Description:

Push the limits of gravity riding with the legendary Altas Crankset. Stiff and strong forged alloy crank arms charge through bike-punishing terrain, opening up endless possibilities for big mountain riding. The highly adaptable Cinch System integrates into any bike standard and any drivetrain with a few simple tools. Go ahead, ride the unthinkable, the Altas doesn’t mind a bit.

Features:

• Light and stiff freeride, DH, and eMTB-rated cranks
• Forged 7050 aluminum crank with web bracing to cut out unnecessary material
• 151mm spindle length optimized for SuperBoost spacing found on many 27.5 DH, 27+, and 29+ bikes
• Industry standard 30mm spline interface, CNC machined from 7050 alloy
• Future-proof proprietary Cinch system offers interchangeable spiders, limitless ring combinations, swappable width 30mm alloy spindles, and full compatibility across all relevant frame standards
• Bottom bracket and chainrings sold separately, find Shimano 12 speed rings here

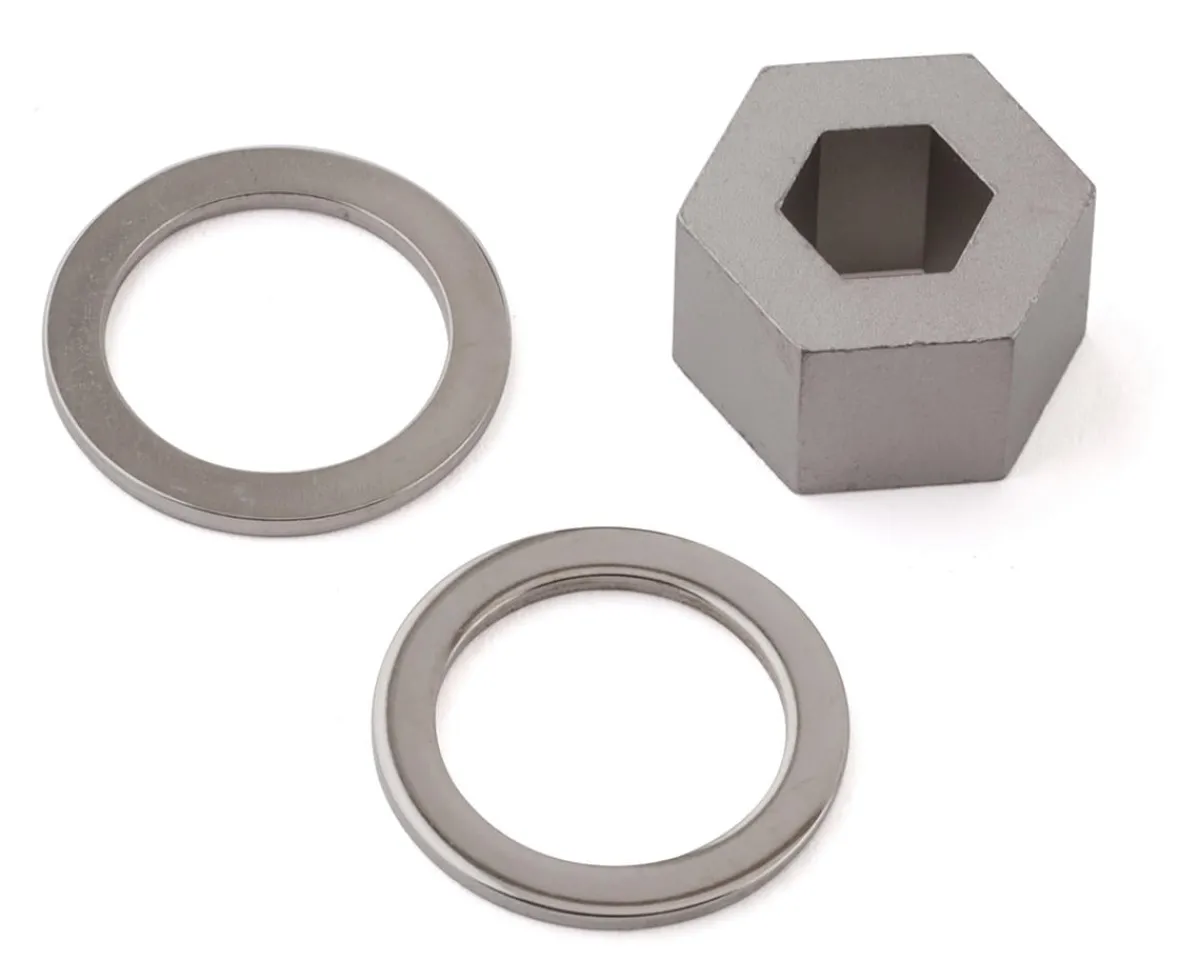

• Includes pedal washers and Cinch nut adapter
• Direct Mount ring or spider, attach using a Park BBT-22 Tool

Specifications:

• Intended Discipline: All-Mountain, Gravity, eMTB
• Spindle Diameter: 30mm
• Bottom Bracket Included: No
• Pedal Spindle: 9/16″
• Chainrings Included: No
• Chainring BCD: –
• Chainring Mount: CINCH Direct Mount
• Chainline: 59mm
• Drive Type: 1x
• Speed Compatibility: 10 Speed, 11 Speed, 12 Speed
• Chainring Material: –
• Crankarm Material: Aluminum
• Color: Black
• Weight: 690g (
