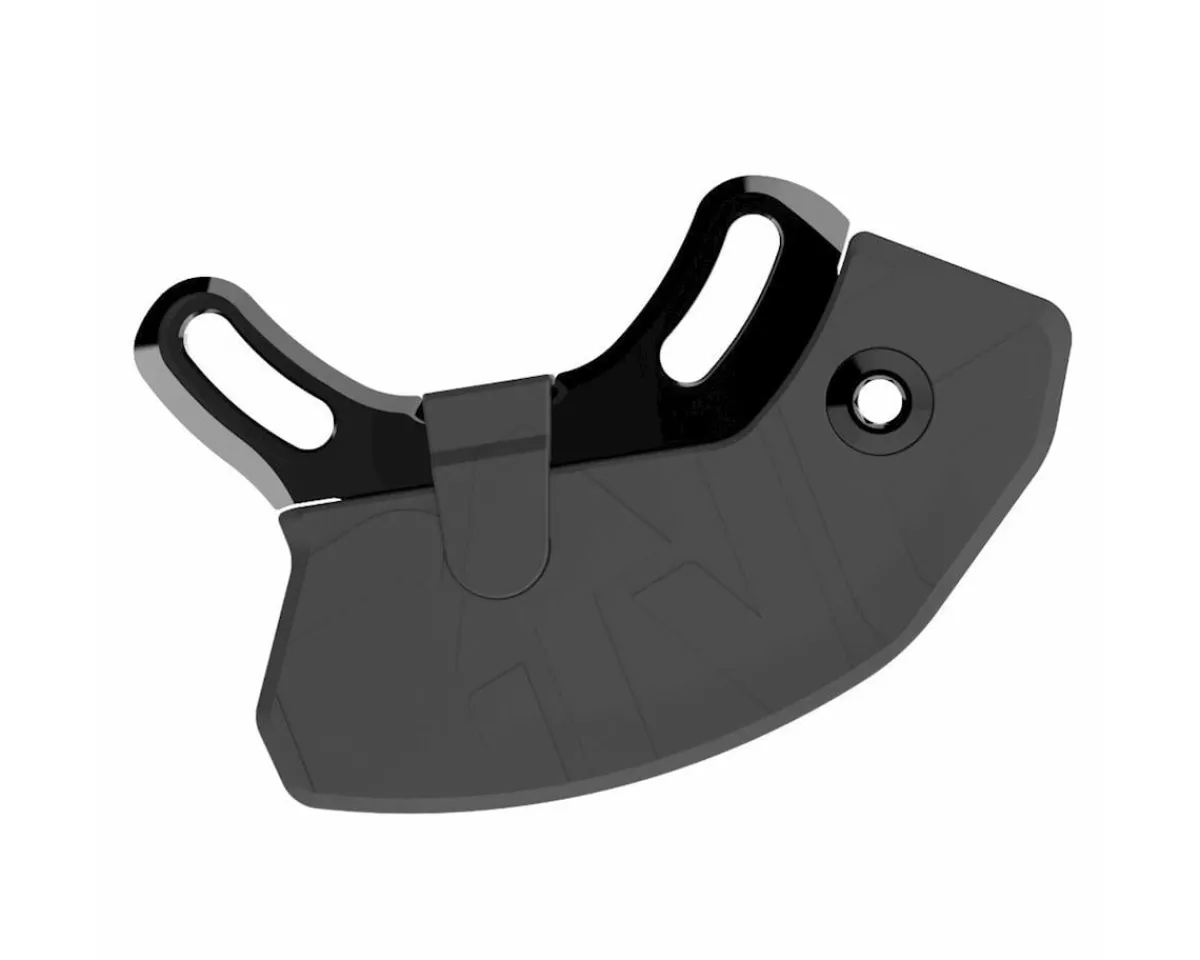

OneUp Components Chainrings & Accessories|Underbash (Black) (28-36T) (ISCG05)

OneUp Components Underbash.

Features:

• Lower chainring bash protection without upper chain retention
• Reinforced nylon bash guard and a back plate cut from 8mm thick 7075-T6 aluminum
• Includes 3 different sizes of bash plate for compatibility with chainrings from 28-36T – Oval chainring and Boost compatible
• 2.5mm chainline adjustment
• Designed for frames with 2 ISCG05 tabs only (Evil, Rocky Mountain, etc). Should not be used on frames with 3 ISCG05 tabs
• 68g (32-34T)

Underbash Setup Instructions:
1. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the bashplate and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame)
2. Rotate backplate to desired location and torque bolts to 5Nm

Underbash Replacement Instructions:
1. Remove Underbash from bike
2. Remove bolt retaining clip from rear bash plate bolt by pushing a 4mm hex through the bolt from the backside of the Underbash.
3. Remove Bash bolts using a 5mm hex
4. Select desired bash plate and reinstall bash bolts to 6Nm
5. Reinstall bolt retaining clip on the rear bash plate bolt
6. Reinstall Underbash onto bike
