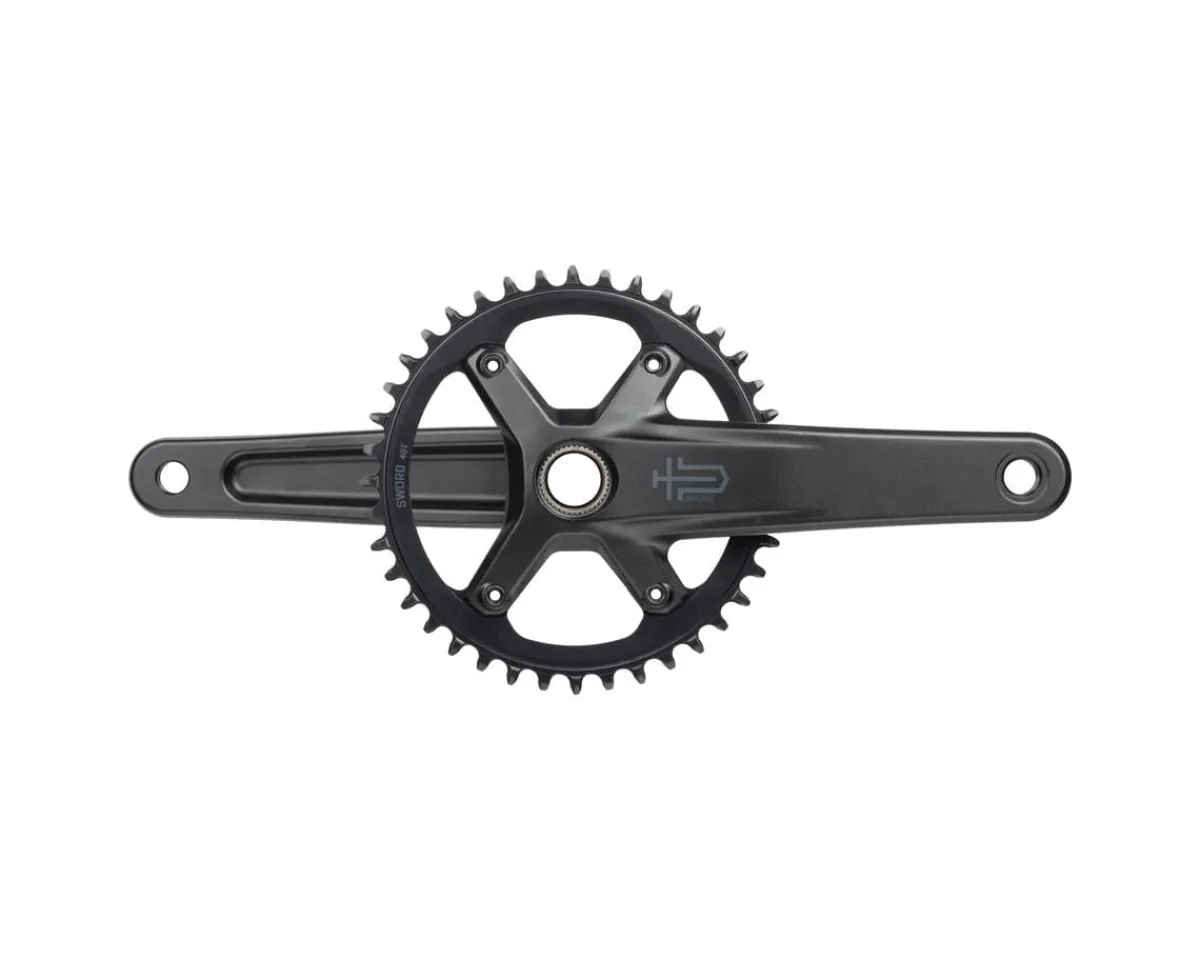

Microshift Cranksets & Parts|Sword 1x Crankset (Black) (10 Speed) (24mm Spindle) (165mm) (40T)

Microshift Sword 1x Crankset Description:

The Microshift Sword 1x crankset is an approachable single chainring drivetrain crank designed with simplicity and maximum compatibility in mind. Available in both 40T and 42T versions, this single-ring option offers users customizing their 1x drivetrains the ability to achieve the gearing of their preference. Sword’s 24mm hollow spindle is compatible with Shimano Hollowtech bottom brackets, or any outboard-bearing bottom bracket compatible with 24mm spindles. Alter your drivetrain from 1x to 2x with ease by installing a smaller ring into the first chainring position.

Features:

• Lightweight 24mm hollow spindle compatible with Shimano bottom brackets
• Designed with 50mm chainlines in mind
• 1x chain-retaining ring works well with clutch derailleurs
• Easily converts to 2x configuration

Specifications:

• Intended Discipline: Road
• Spindle Diameter: 24mm (Shimano)
• Bottom Bracket Included: No
• Pedal Spindle: 9/16″
• Chainrings Included: Yes
• Chainring BCD: 110mm Shimano Asymmetric
• Chainring Mount: 4-Bolt
• Chainline: 50mm
• Drive Type: 1x
• Speed Compatibility: 10 Speed
• Chainring Material: Aluminum
• Crankarm Material: Aluminum
• Color: Black
• Weight: 790g (172.5mm | 40T), 810g (172.5mm | 42T)
