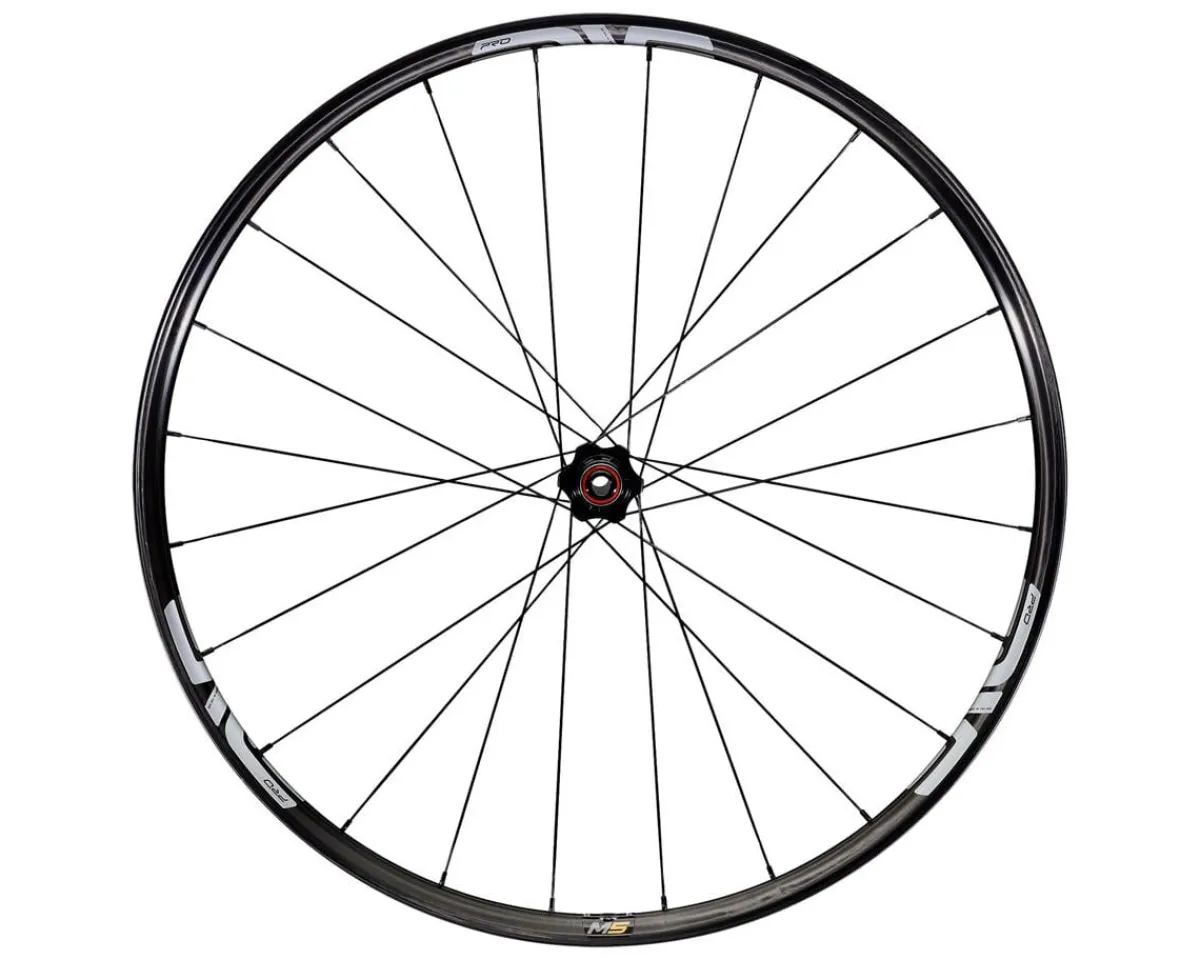

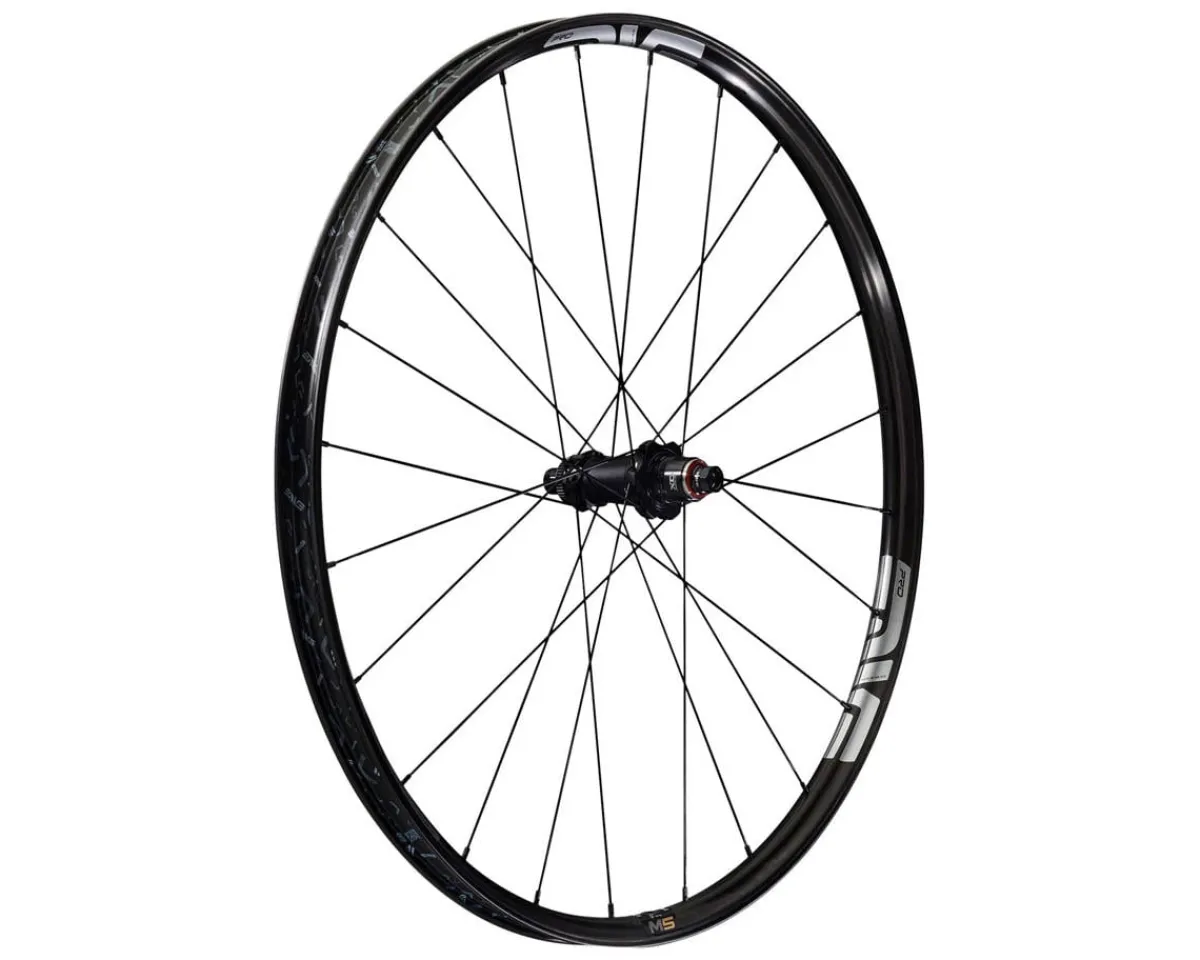

ENVE Wheels & Parts|M5 Pro Carbon XC Mountain Wheels (Black) (SRAM XD) (Rear) (12 x 148mm (Boost)) (29″) (Centerlock) (Tubeless)

ENVE M5 Pro Carbon Mountain Wheel Description:

The M5 Pro is ENVE’s flagship, no-holds barred XC mountain bike racing wheelset that is designed to bring a compliant ride, durability, and light weight to riders looking to upgrade their speedy mountain bike. Constructed out of a compliant but tough carbon fiber layup, these wheels have unique front and rear specific rim profiles. The front rim has wider overall profile with slightly thinner bead wall than the rear wheel which results in more compliance that will improve the front wheel/tire’s ability to stick to corners and traction when rolling over obstacles, while the rear wheel has been built with a slightly narrower profile with thicker bead wall that better protects the tires sidewall and creates a tougher wheel that can support the rider’s weight and pedaling torque. Both wheels also have ENVE’s Wide Hookless Bead design for improved impact resistance as well as protection for the tire in rough terrain.

At the core of the M5 rear wheels is ENVE’s straight-pull INNERDRIVE mountain bike hubs. INNERDRIVE improves ratchet-driven technologies by increasing the diameter of the ratchets, which allows for more engagement points without sacrificing durability. Further benefits of the INNERDRIVE system include ENVE’s Perfect Preload system which delivers prolonged bearing life, reduced rolling friction, and minimal maintenance. The straight pull hubs and spoke design eliminate the J-Bend found in traditional spokes, which is a common spoke failure point, and as added bonuses these spokes weigh less and add to the overall compliance of the wheels. Additionally these wheels are proudly built in the USA and are backed by an excellent warranty (when registered through ENVE’s website), allowing a rider to focus on setting personal bests and to worry less about their wheels getting them to the finish line.

Features:

• The front rim’s additional width and more compliant construction add traction and improve the tire/wheels ability to contour over and around terrain
• Wide Hookless Bead construction dissipates impact forces over a broader surface to significantly improve pinch flat resistance
• INNERDRIVE™ hubs with oversized 80-point steel ratchets positioned over the bearings reduces stress on the bearings and axle, while providing quick engagement, low rolling friction, and prolonged bearing life
• Straight pull spoke design eliminates the J-Bend found in traditional spokes to eliminate a common failure point and the straighter path also improves overall wheel compliance for smoother ride
• Alloy external nipples with Nyloc threaded locking inserts reduce rotating weight, minimize spoke loosening so the wheels will stay straighter for longer, and are easily accessed for when it is time to perform routine maintenance
• Backed by ENVE’s 5-year Factory Warranty and Incidental Damage Protection when registered through ENVE’s website (click on any of these highlighted/underlined words to be taken to the ENVE Wheel Registration Website)
• Rims are proudly handmade and wheels are assembled in Ogden, Utah

Specifications:

• Wheel Size: 29″
• ISO Diameter (ETRTO): 622
• Position: Front | Rear
• Tire Type: Tubeless (Clincher)
• Brake Type: Disc Brake (Centerlock)
• Hub: ENVE INNERDRIVE Hubs (w/ 80t Drive Ratchet; 4.5° Engagement)
• Axle Type: Thru Axle
• Hub Spacing: 15 x 110mm (Front) | 12 x 148mm (Rear)

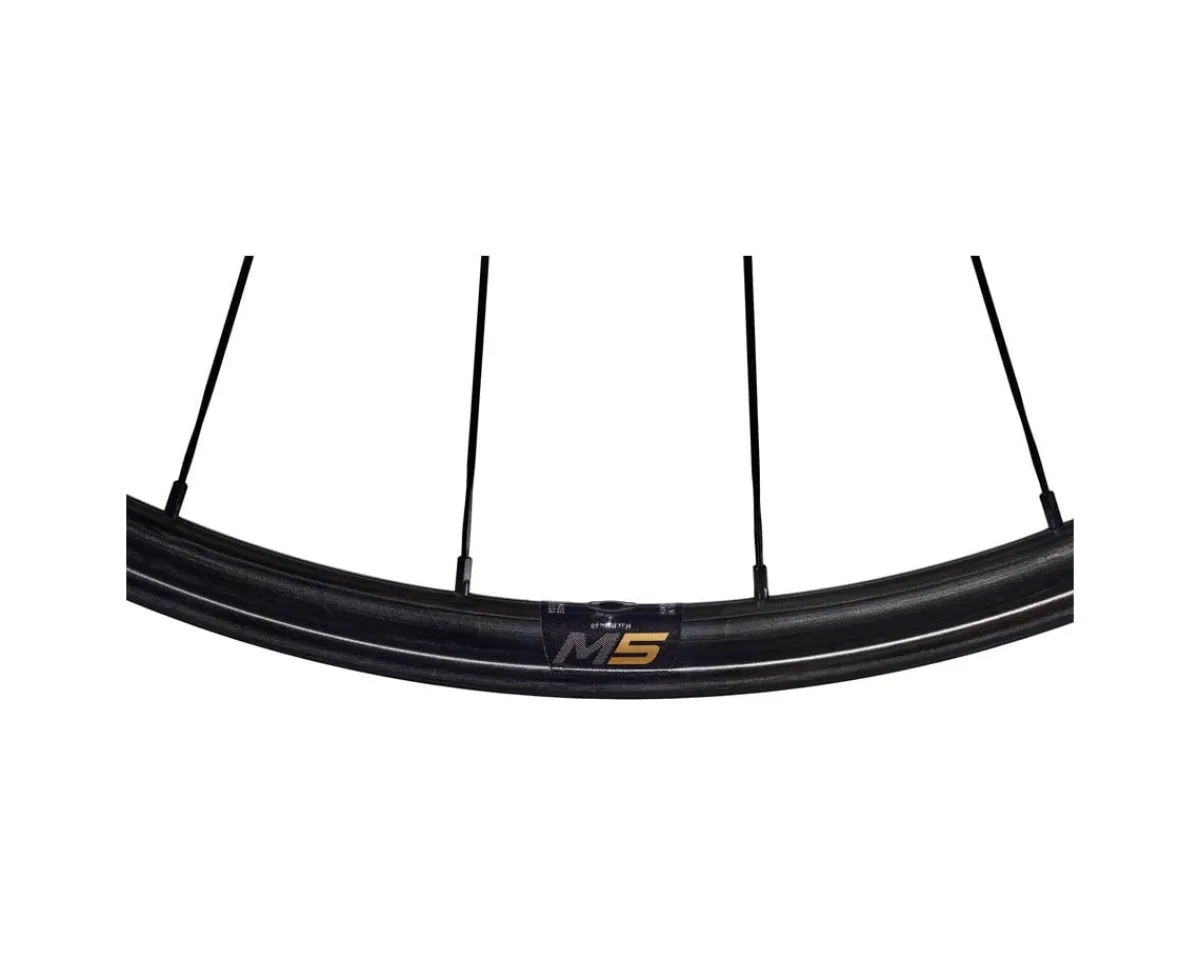

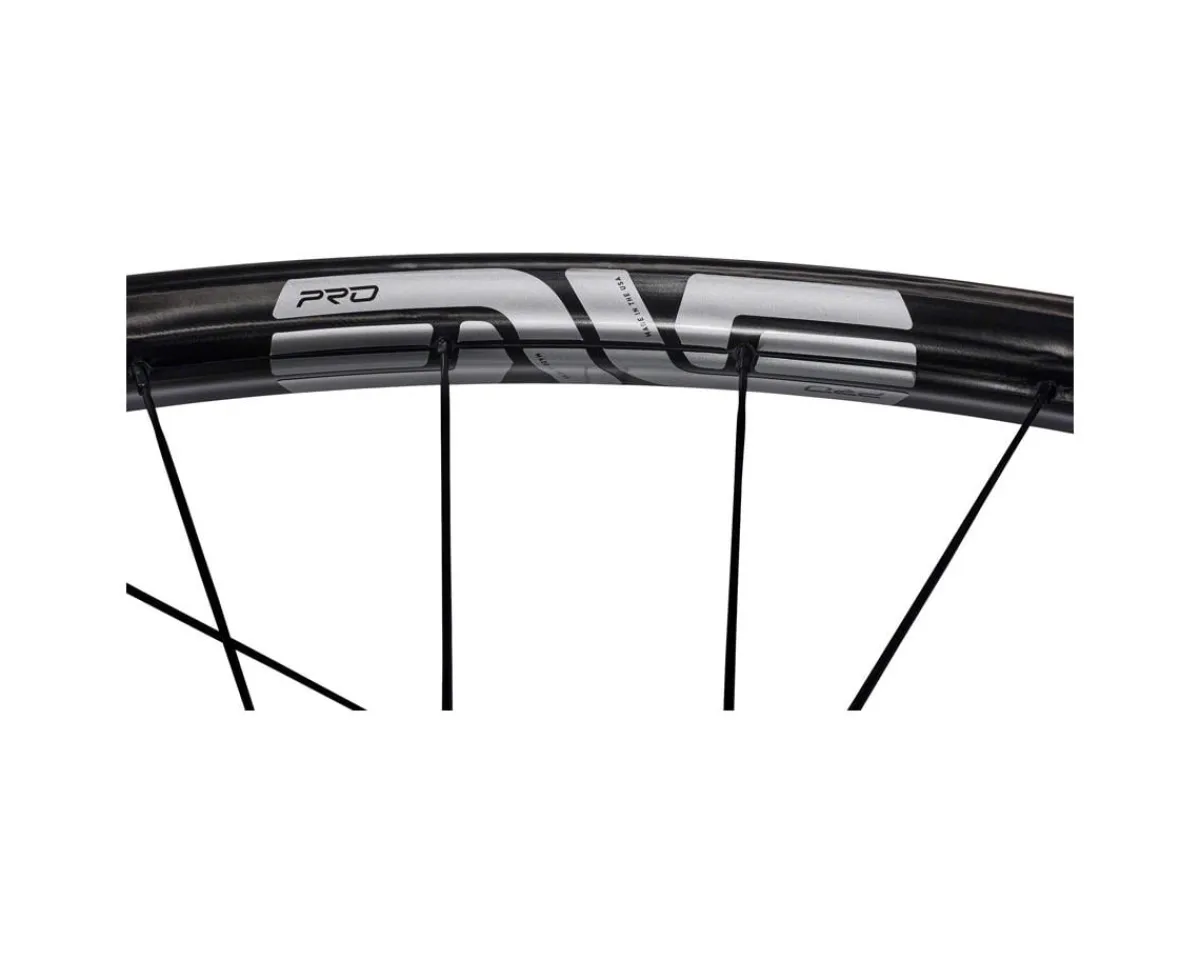

• Rim: Enve Wide Hookless (20mm Depth)
• Rim Width (Inner): 29mm (Front) | 27mm (Rear)
• Valve: Presta
• Spoke Count: 24H (Front) | 24H (Rear)
• Spoke Type: Straight Pull
• Material: Carbon Fiber
• Color: Black
• Weight (+/-1.5%): 1341g (For Both Wheels W/ Tape and Valves Included)

Includes:

• M5 Wheel (Front or Rear)
• (2) Spare Spokes + Nipples
• Tubeless Kit (Pre-Installed)
• Valves Stem
• Tubeless Rim Tape
• Valve Stem Nut
• Wheel Manual
• Wheel-Build Card
• *Rotor lock rings are not included*
